Yacht Navigation Light LED DC12-24V 5W | CXH-2YB 2YW
Yacht Navigation Light LED DC12-24V 5W | CXH-2YB 2YW Yacht Navigation Light LED DC12-24V 5W | CXH-2YB 2YW

Yacht Navigation Light LED DC12-24V 5W | CXH-2YB 2YW

Item No.: CXH1/2/3/4 - 2YB 2YW
Application:    For ships smaller than 12m as the signal lights
Standard:      GB/T 3028-1995，IEC60598-1-2008
Temperature: -30℃ to 55℃
  • Feature: Yacht
  • Material: Plastic
  • Protection Class: IP66
  • Voltage: 12V/24V
  • Lamp Holder: LED
    • INQUIRY
    Description Photo

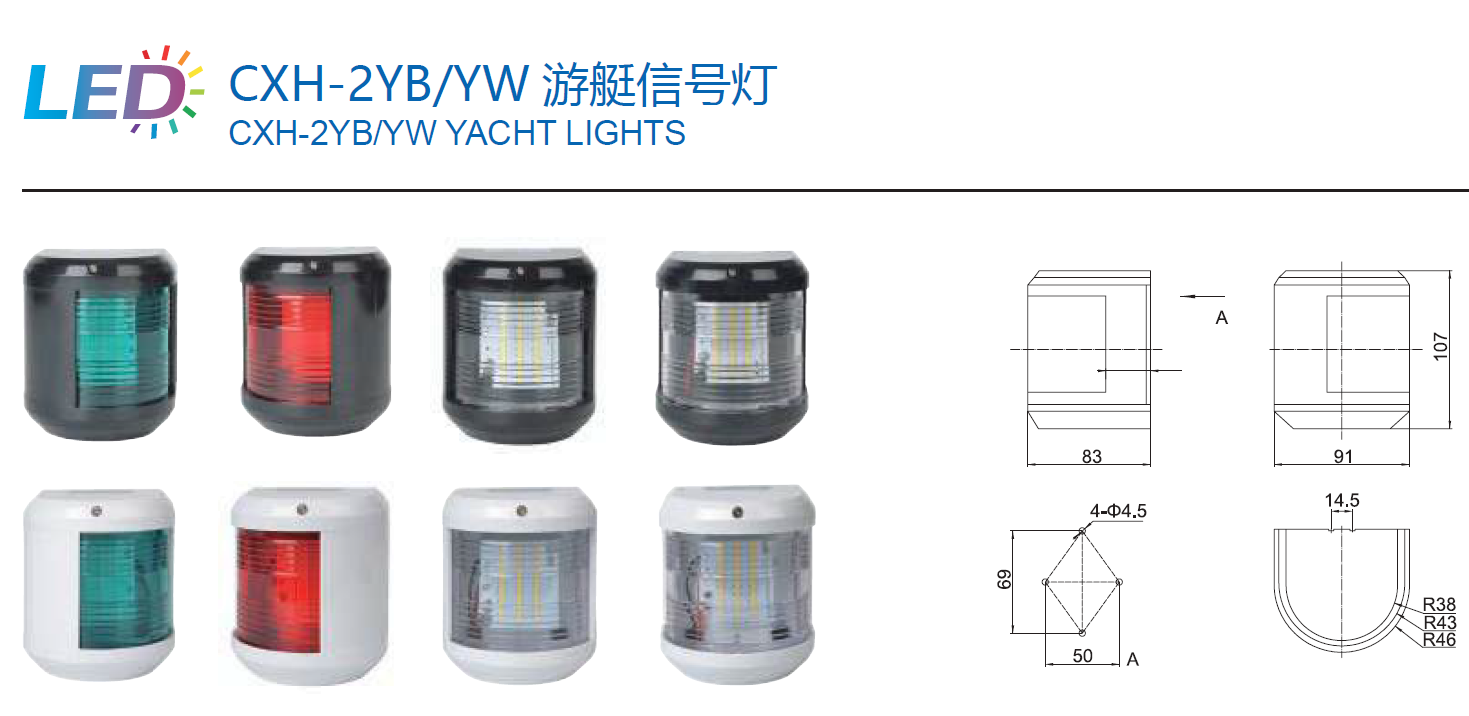

      Dimension



      Selection

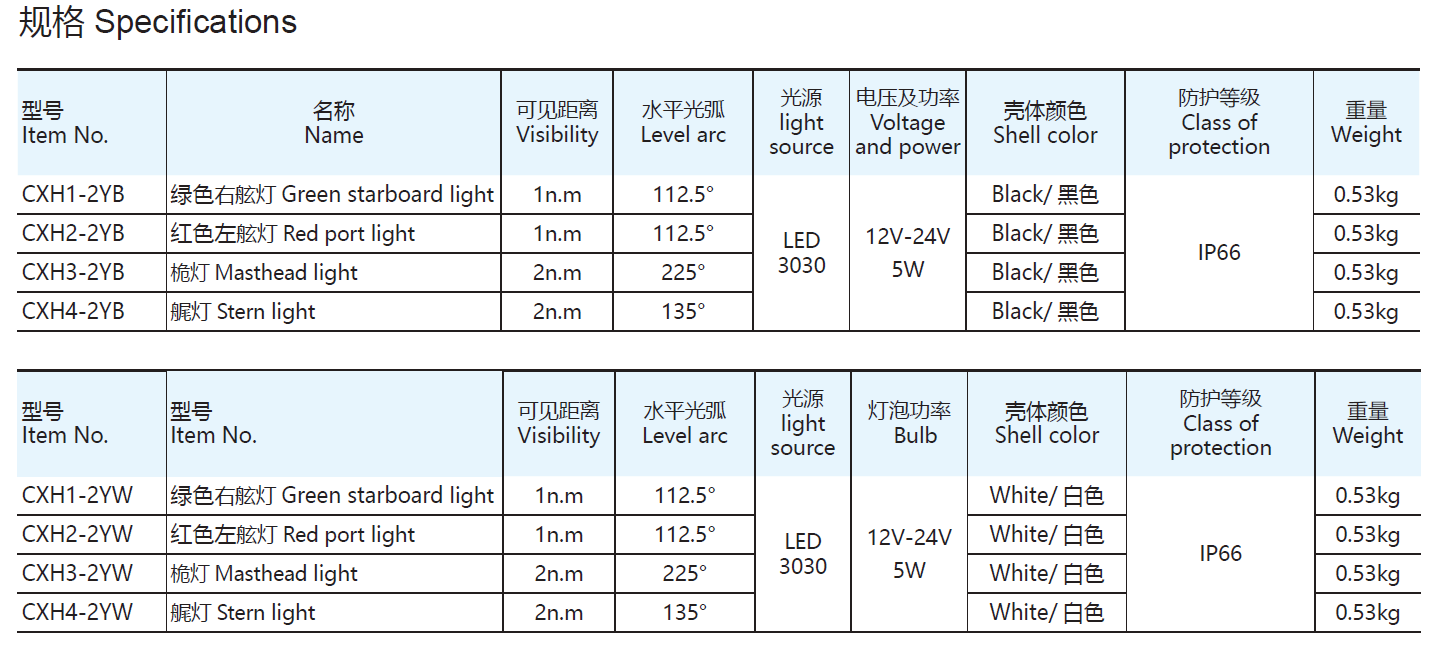

     Item Name  CXH1-2Y  CXH2-2Y  CXH3-2Y  CXH4-2Y
     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light
     Visibility  1n.m  1n.m  1n.m  2n.m
     Level Arc  112.5°  112.5°  225°  135°
     Color  Green  Red  White  White
     Power  5W  5W  5W  5W
     Weight  0.53 KGS  0.53 KGS  0.53 KGS  0.53 KGS
      IMPA 370421 - 370428 / CXH1/2/3/4 - 2YB 2YW
