Yacht Navigation Light LED DC12-24V 3W | CXH-6YB 6YW
Yacht Navigation Light LED DC12-24V 3W | CXH-6YB 6YW Yacht Navigation Light LED DC12-24V 3W | CXH-6YB 6YW

Yacht Navigation Light LED DC12-24V 3W | CXH-6YB 6YW

Item No.: CXH1/2 - 6YB 6YW
Feature:  LED, signal light for yacht or up to 12 meters vessel
Temperature: -20℃ to 45℃
Material: Plastic
Protection Level:  IP66
Voltage/Power: DC12-24V / 3W
  • Feature: Yacht
  • Material: Plastic
  • Protection Class: IP66
  • Voltage: 12V/24V
  • Lamp Holder: LED
    • INQUIRY
    Description
      Dimension





      Selection

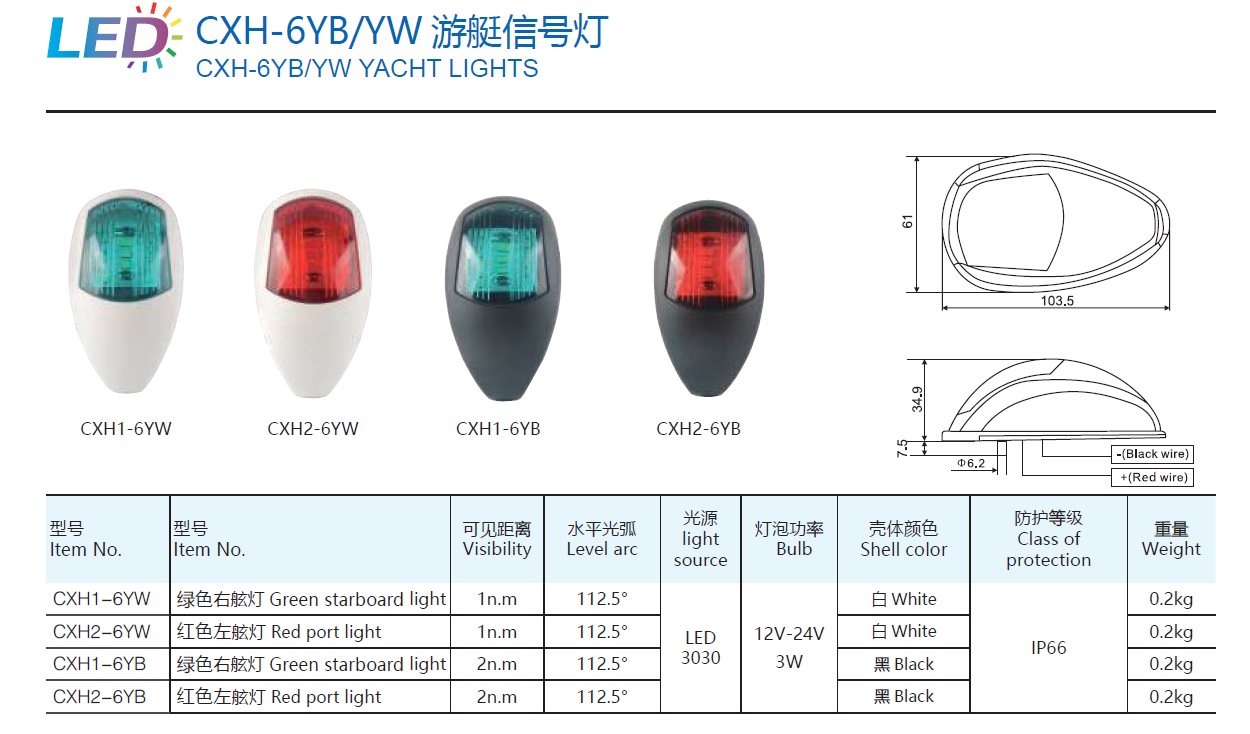

     Item Code  Item Name
     Visibility
     Level Arc
     Color
     Power

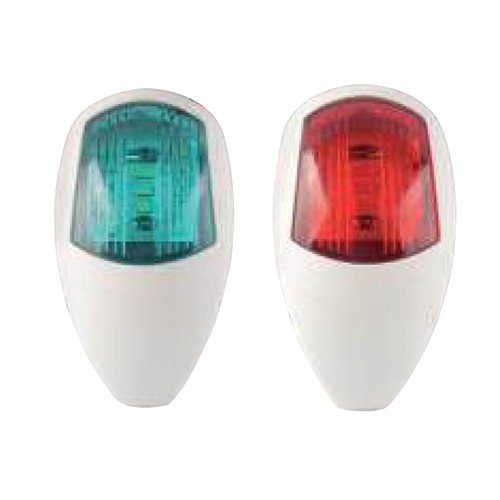

     CXH-6YW  Starboard Lights（Green）, Port Light（Red）  1n.m  112.5°  White  3W

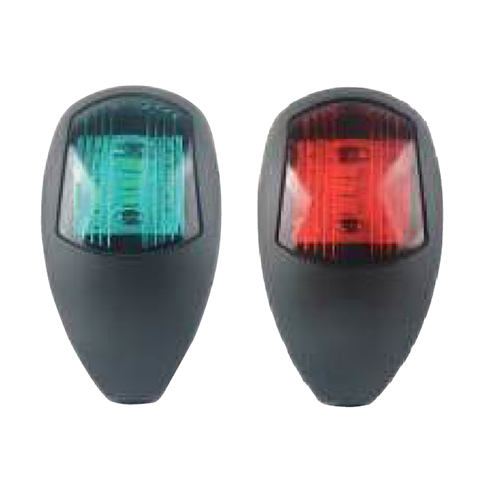

     CXH-6YB  Starboard Lights（Green）, Port Light（Red）  2n.m  112.5°  Black  3W
     Working Life  For 1000 Hours, Lumen Maintenance Percentage > 90%
    *Remarks: This light is for type "Z",The external flexible cable or cord of this luminaire can't be replaced; if the cord is damaged, the luminaire shell will be destroyed.
