Home > Marine Navigation Signal Light > Navigation Lights - Single

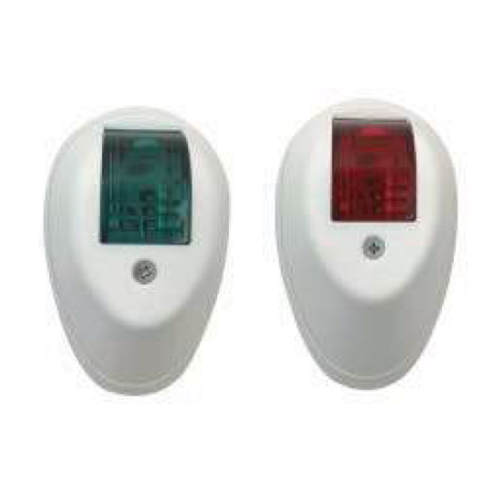

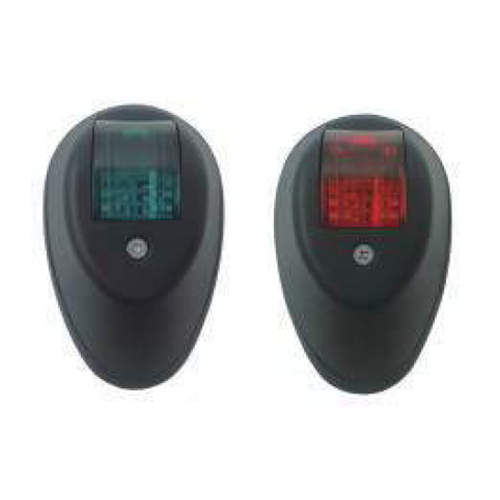

Yacht Navigation Light LED DC12-24V 2.5W | CXH-5YB 5YW
Yacht Navigation Light LED DC12-24V 2.5W | CXH-5YB 5YW Yacht Navigation Light LED DC12-24V 2.5W | CXH-5YB 5YW

Yacht Navigation Light LED DC12-24V 2.5W | CXH-5YB 5YW

Item No.: CXH1/2 - 5YB 5YW
Application:    For ships smaller than 12m as the signal lights
Standard:      GB/T 3028-1995，IEC60598-1-2008
Temperature: -30℃ to 55℃
  • Feature: Yacht
  • Material: Plastic
  • Protection Class: IP66
  • Voltage: 12V/24V
  • Lamp Holder: LED
    • INQUIRY
    Description Photo

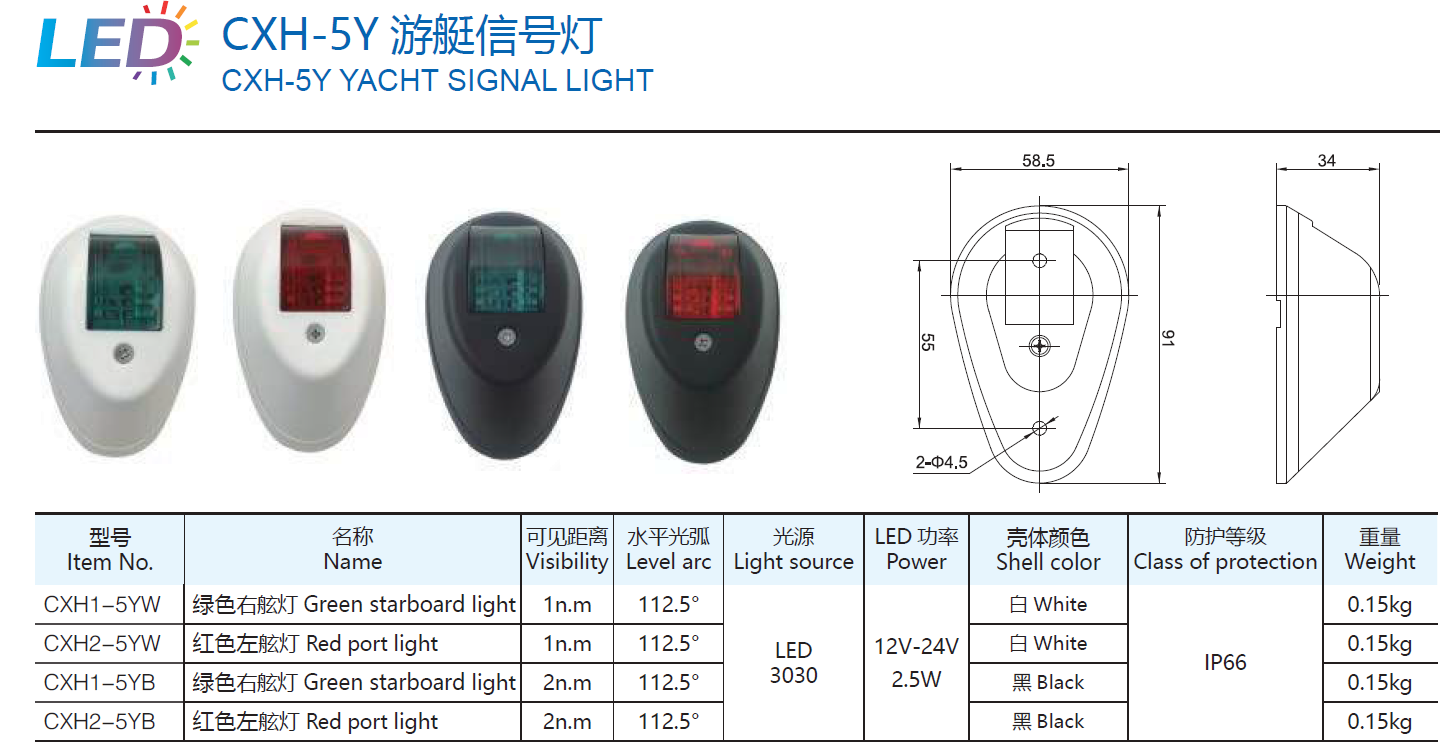

      Dimension



      Selection
     Item Name  CXH1-5YB  CXH2-5YB  CXH1-5YW  CXH2-5YW
     Item Type  Starboard Light  Port Light  Starboard Light  Port Light
     Visibility  2n.m  2n.m  1n.m  1n.m
     Level Arc  112.5°  112.5°  112.5°  112.5°
     Color  Black  Black  White  White
     Power  2.5W  2.5W  2.5W  2.5W
     Weight  0.15 KGS  0.15 KGS  0.15 KGS  0.15 KGS
      IMPA 370421 - 370428 / CXH-5YB 5YW
