Home > Marine Navigation Signal Light > Navigation Lights - Single
Yacht Navigaiton Light LED DC12V 24V 5W | CXH-1YB 1YW
Yacht Navigaiton Light LED DC12V 24V 5W | CXH-1YB 1YW Yacht Navigaiton Light LED DC12V 24V 5W | CXH-1YB 1YW

Yacht Navigaiton Light LED DC12V 24V 5W | CXH-1YB 1YW

Item No.: CXH1/2/3/4 -1YB 1YW
Feature: LED, use on boats up to 12 meters
Material: Plastic
Protection Level: IP66
Voltage/Power: DC12V-24V / 5W
Color: Red / Green / White
  • Feature: Yacht
  • Material: Plastic
  • Protection Class: IP66
  • Voltage: 12V/24V
  • Lamp Holder: LED
    • INQUIRY
    Description Photo
      Dimension



      Selection

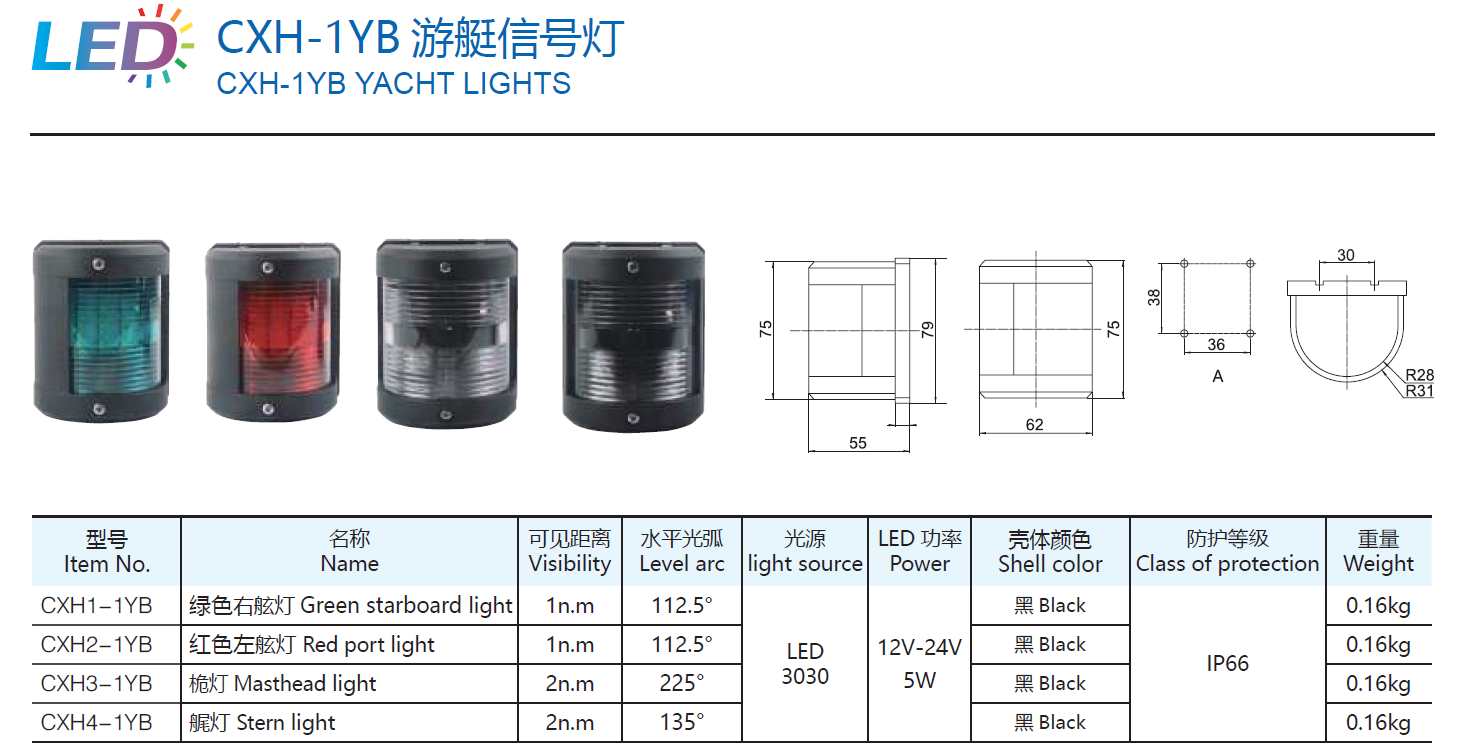

     Item Name  CXH1-1YB  CXH2-1YB  CXH3-1YB  CXH4-1YB
     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light
     Visibility  1n.m  1n.m  2n.m  2n.m
     Level Arc  112.5°  112.5°  225°  135°
     Color  Green  Red  White  White/ Yellow
     Power  5W  5W  5W  5W
     Weight  0.16 KGS  0.16 KGS  0.16 KGS  0.16 KGS
      CXH-1YB 1YW
