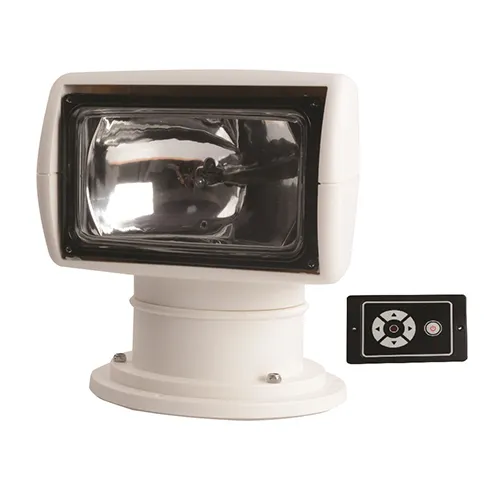

Yacht Marine Searchlight DC12V 24V 100W | TG25-A
Yacht Marine Searchlight DC12V 24V 100W | TG25-A

Yacht Marine Searchlight DC12V 24V 100W | TG25-A

Item No.: TG25-A
Application: Can omni-directional,multi angle and long-distance lighting, very much suitable for yacht, coast guard, marine poolice, fishing boat operation.
Material:  Plastic
Protection Class:  IP66
Voltage:  DC12V-24V / Power:  100W / Current 3A/6A
Illuminant:  halogen bulb / 2,300LM / CK: 4300K

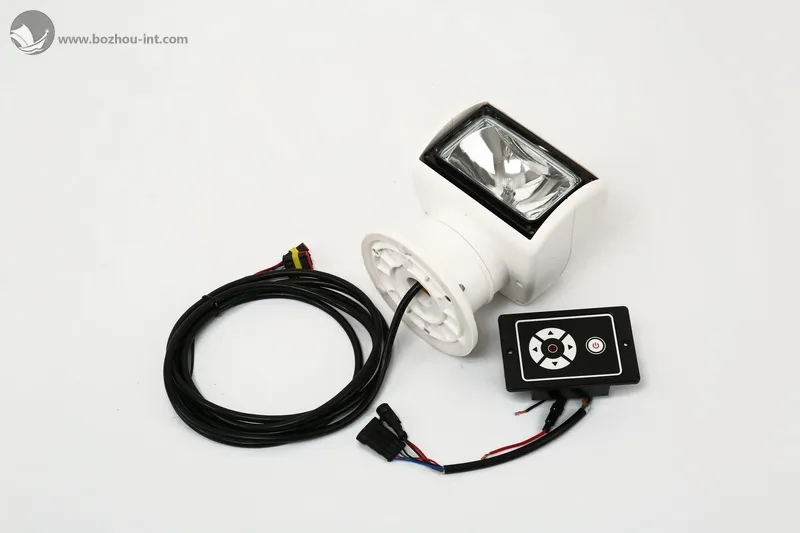

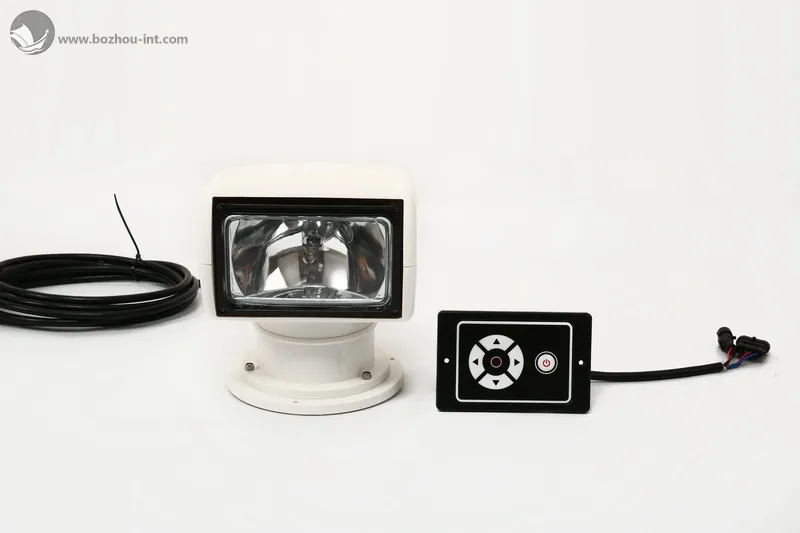

With controller
Size:  Φ190 x W180 x H200mm
Weight:  2.6 KGS
INQUIRY
Description Photo

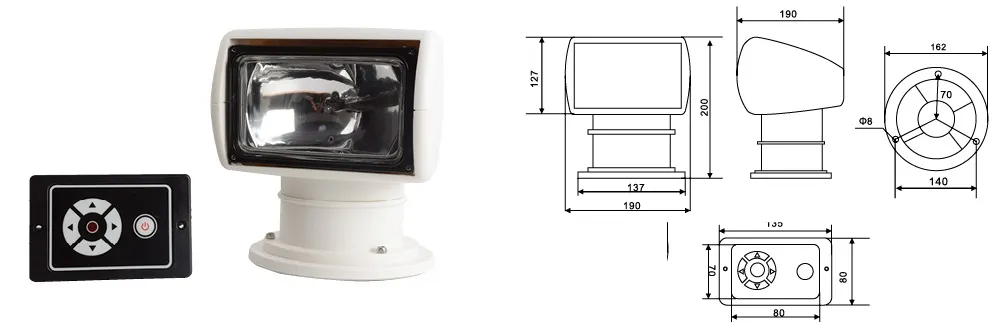

  Dimension


  Feature
◆ Hard thermoplastic shell, anti-oxidation, strong impact resistance, good sealing, can work normally in severe environment such as storm;

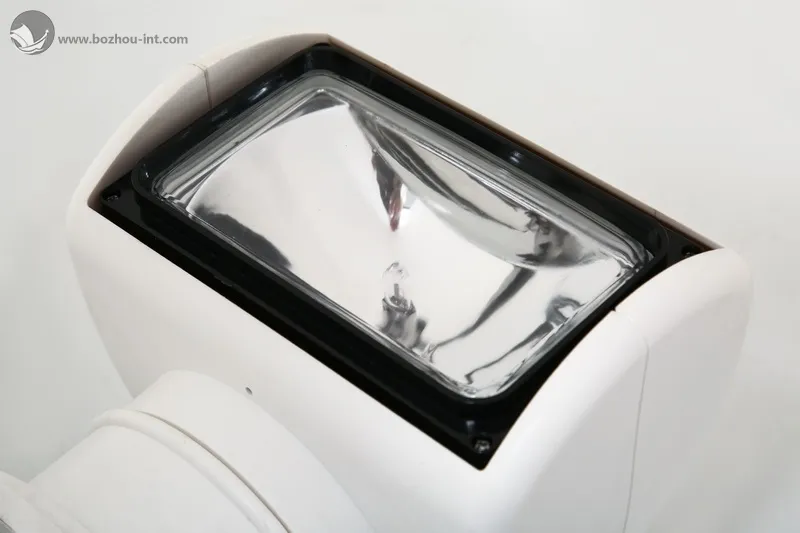

◆ Blue diamond xenon filled halogen lamp light source makes light more penetrating;
◆ Super intensity light source design, up to 800 meters lighting distance;
◆ Multi angle omnidirectional lighting: horizontal 360 degree rotation, up and down 72 degree rotation;

  How to use
◆ To meke the red wire connect to the positive pole, and the black wire to the negative pole;
◆ Voltage shoude be DC12V or DC 24V, other power supply can not be used.
  Searchlight TG25-A
