Home > Marine Spotlight and Flood Light > Marine Searchlight
Steel Searchlight Xenon1000W With Lifter | TZ1
Steel Searchlight Xenon1000W With Lifter | TZ1

Steel Searchlight Xenon1000W With Lifter | TZ1

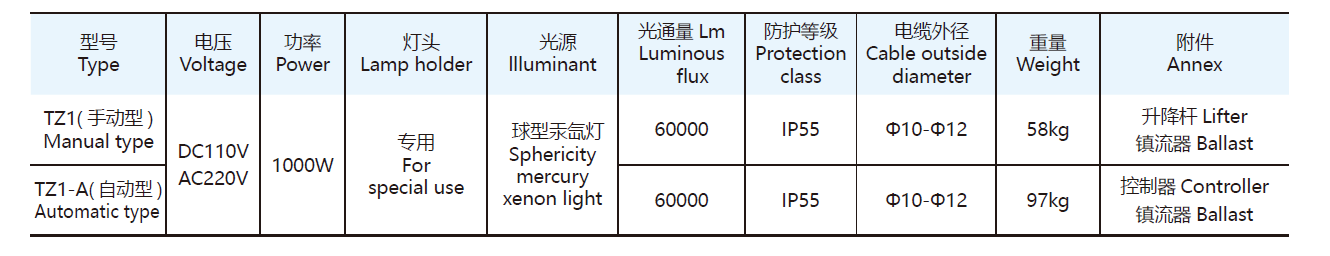

Item No.: TZ1
Application: For night navigation, rescue, warning and other long-distance search;
Certification: ABS / CCS
Patent: ZL 201420804513.3
Material:  Steel + Tempered Glass
Protection Class:  IP55      Cable: Φ10- Φ12
Light Source:  Sphericity mercury xenon light / 60,000Lm
Range:  Horizontally 350°，up30° and down 30° by lifter
Annex: With Lifter and Ballest

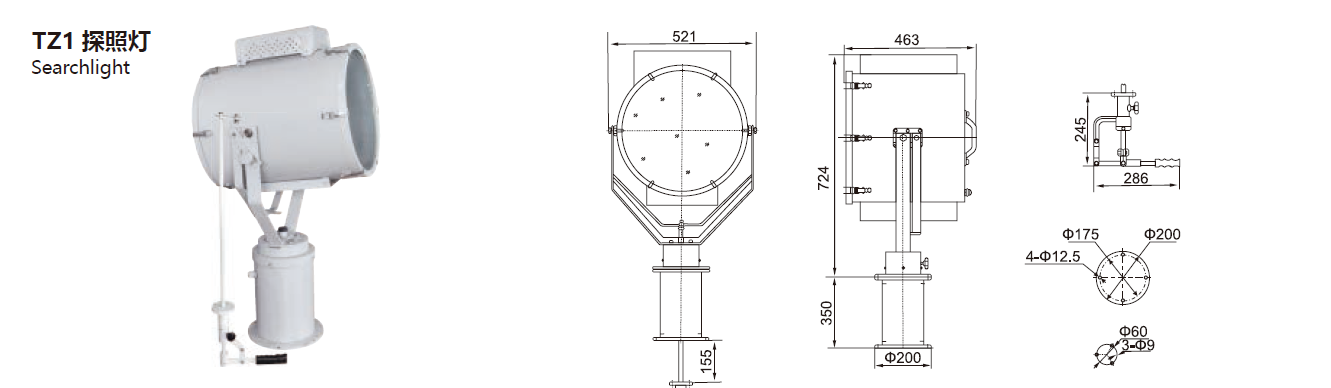

Szie: Φ521 x W463 x H1074mm  /  Weight: 58 KGS
INQUIRY
Description
  Dimension



  Feature

◆ Equipped with spherical tempered glass reflector and focal length adjusting device, which can flexibly adjust the focal length up and down, back and forth, with high brightness and long search distance;
◆ There is ball plate in base, and equipped with lifting device, can manually control the lamp body rotated 350 ° horizontally and pitch 30 °;

* Remarks - When under voltage DC110V, a distributor box is nececessary, please indicate when ordering.
