Home > Marine Fluorescent Light > Fluorescent - Pendant

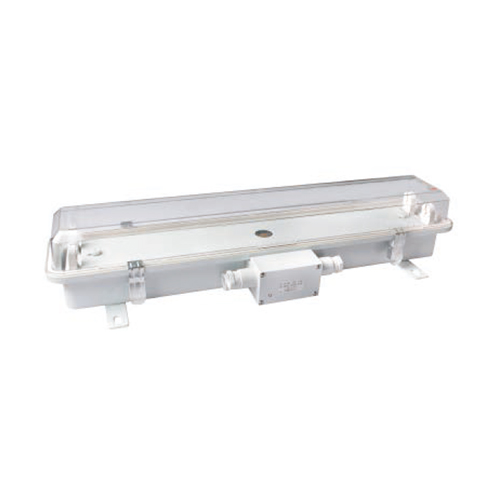

Marine Pendant Fluorescent Light G13 2x20W | JCYA23-2
Marine Pendant Fluorescent Light G13 2x20W | JCYA23-2

Marine Pendant Fluorescent Light G13 2x20W | JCYA23-2

Item No.: JCYA23-1/2, JCY43-1/2
Standard: JISF8008-2002
Material: Shell: Steel    |    Lampshade: PC
Rated Voltage: 110V/60Hz, 220V/50Hz/60Hz
Protection Class: IP56
Lamp Holder: G13
Power Factor: >0.85
Cable: Φ12~Φ16
Temp Range:  -20℃ to 55℃
INQUIRY
Description Photo

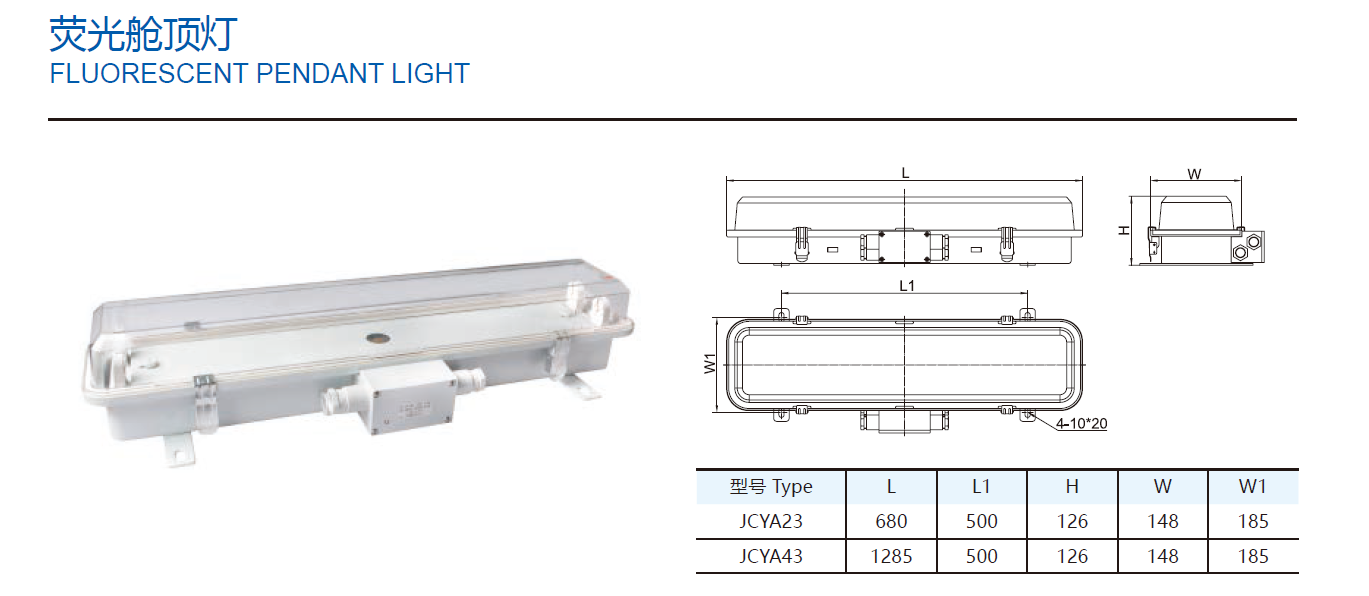

  Dimension

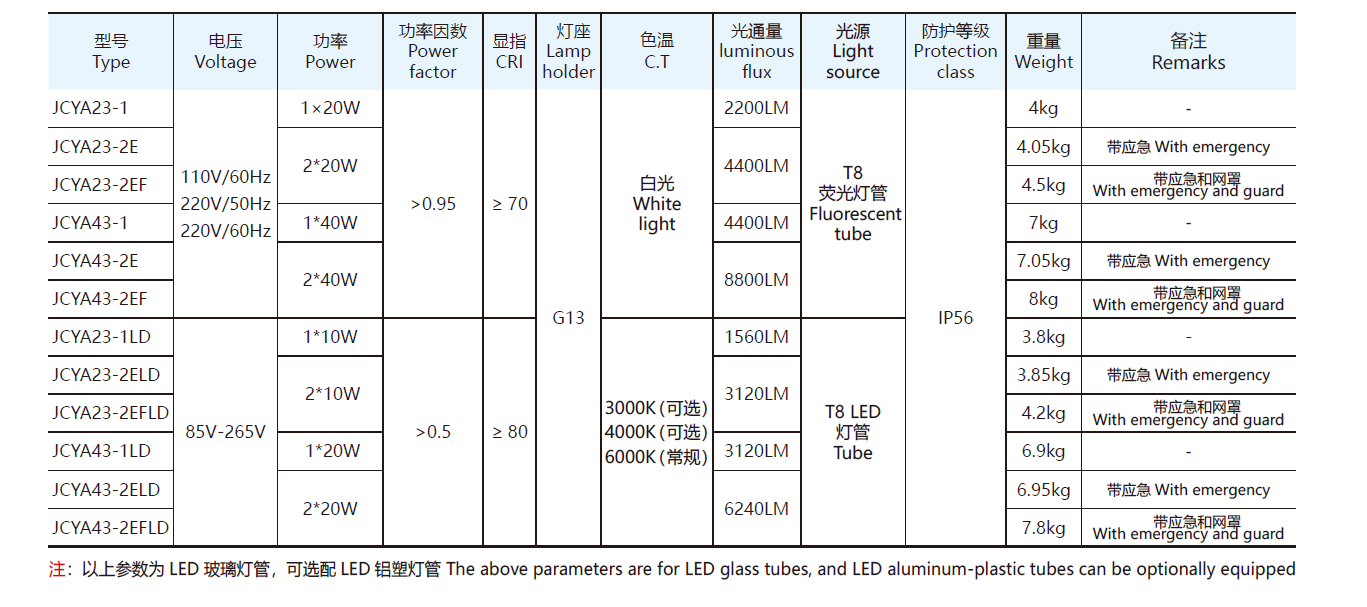

  Selection
 Item Code  Power  Size/mm  Weight  Remarks
 JCYA23-1  1*20W  L680 x W220 x H126  4.0 KGS  -
 JCYA23-2E  2*20W  L680 x W220 x H126  4.0 KGS  With Emergency
 JCYA43-1  1*40W  L1280 x W220 x H126  7.0 KGS  -
 JCYA43-2E  2*40W  L1280 x W220 x H126  7.0 KGS  With Emergency
  JCYA23-1
