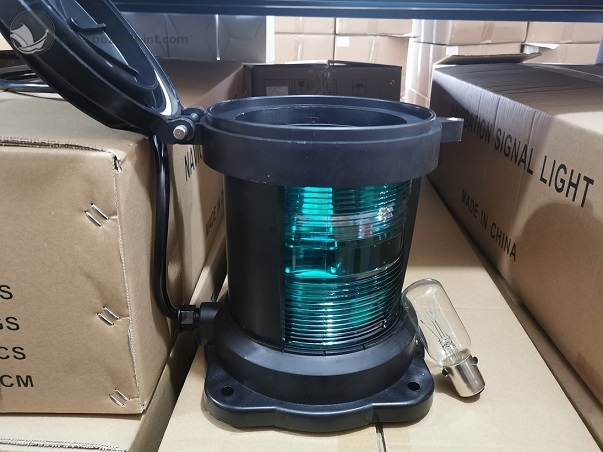

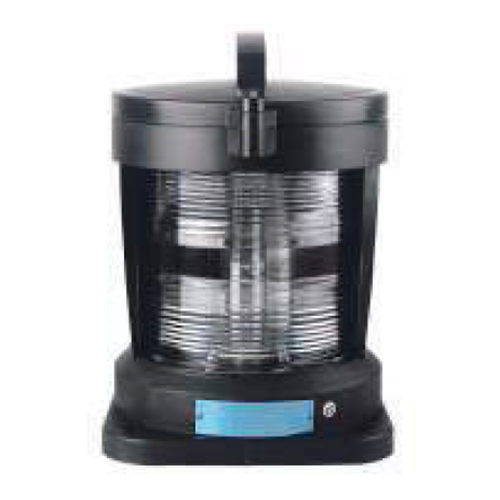

Marine Navigation Light P28S 1x60W | CXH-11P
Marine Navigation Light P28S 1x60W | CXH-11P Marine Navigation Light P28S 1x60W | CXH-11P Marine Navigation Light P28S 1x60W | CXH-11P Marine Navigation Light P28S 1x60W | CXH-11P Marine Navigation Light P28S 1x60W | CXH-11P

Marine Navigation Light P28S 1x60W | CXH-11P

Item No.: CXH1/2/3/4/6/ - 11P
Application:    For Ships More Than 50 Meters As The Signal Lights
Standard:      GB/T 3028-1995， IEC60598-1-2008
Certification:  ABS
Temperature: -30℃ to 55℃
  • Feature: Single Deck
  • Material: Shell: PA+GF  |  Lampshade: PC  |  Lends Hood: Stainless Steel
  • Protection Class: IP56
  • Voltage: AC100-240V, 50/60Hz, DC24V
  • Lamp Holder: P28S
  • Cable Diameter: Φ12~Φ13
    • INQUIRY

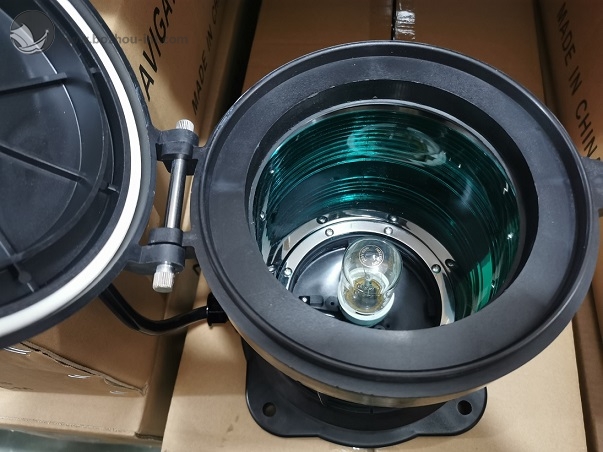

    Description Photo

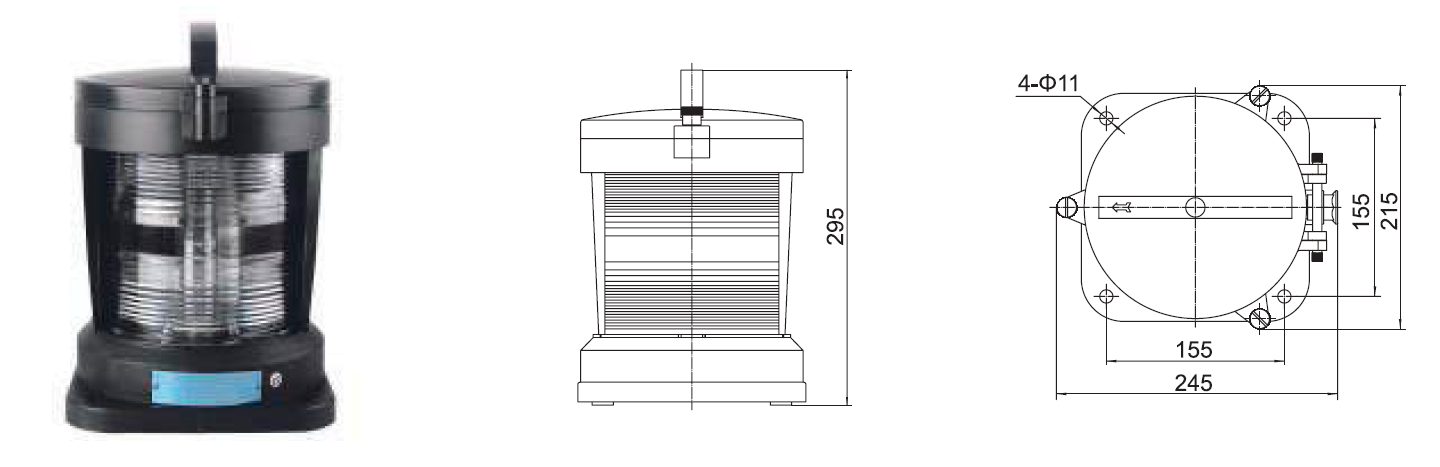

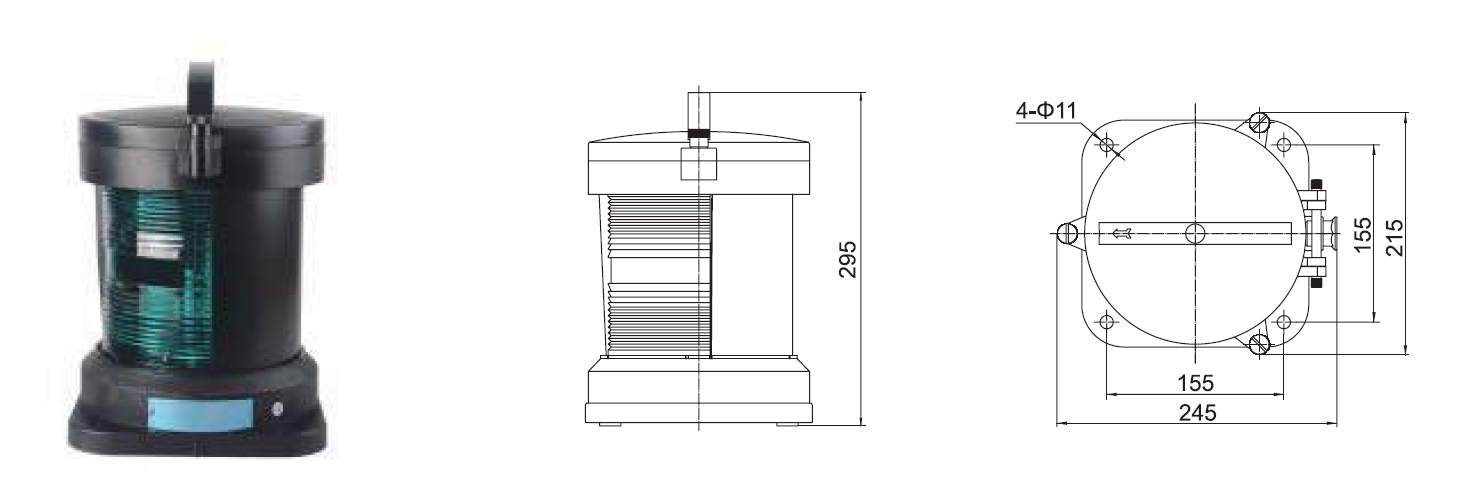

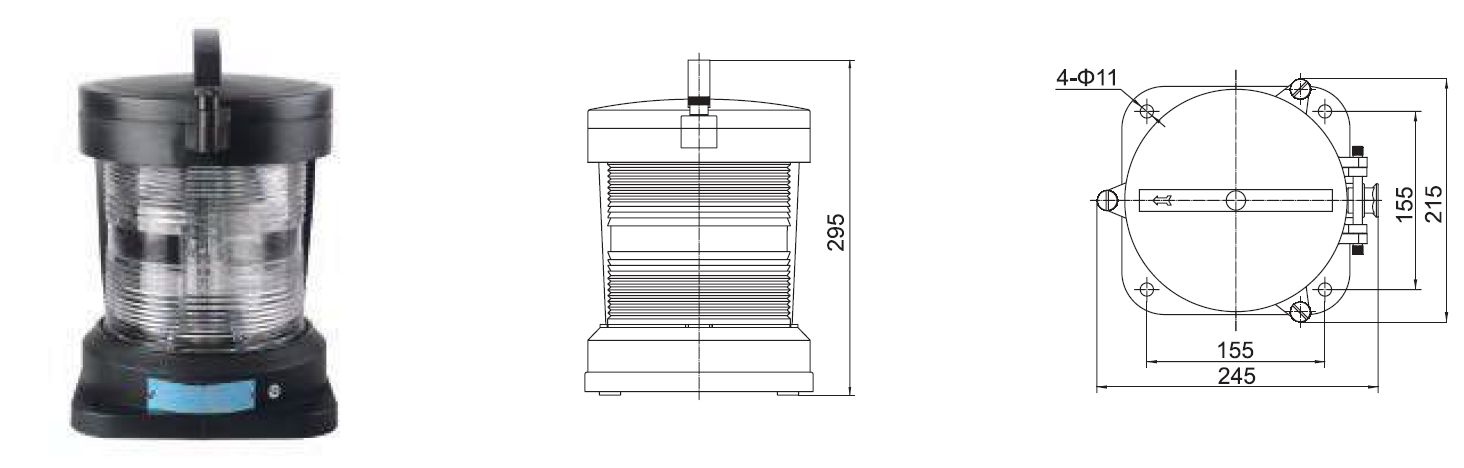

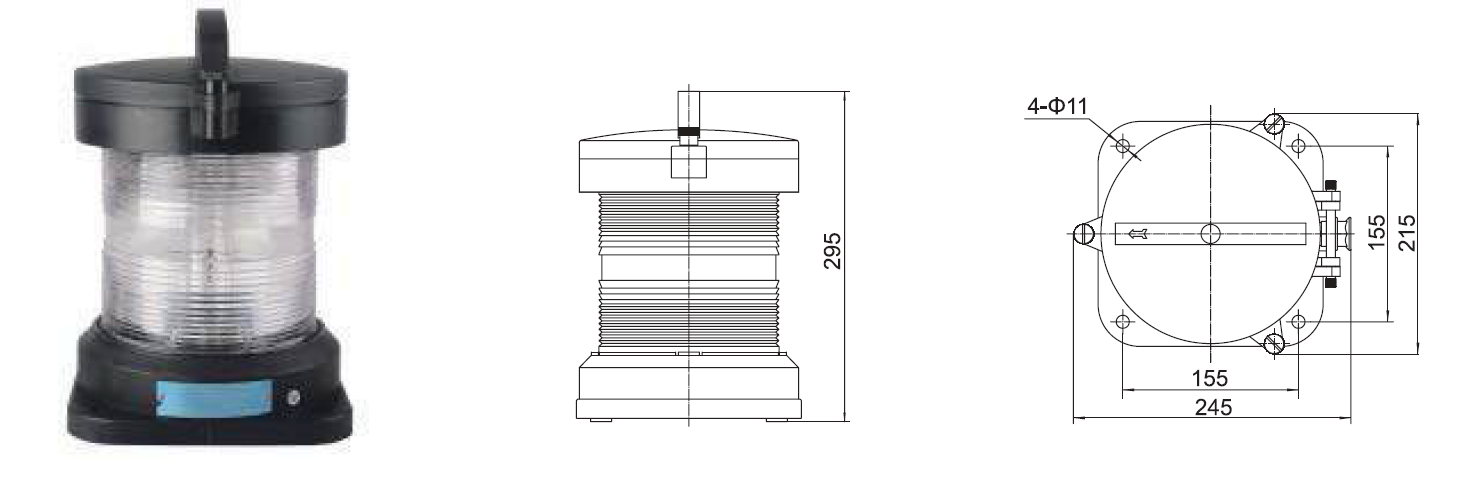

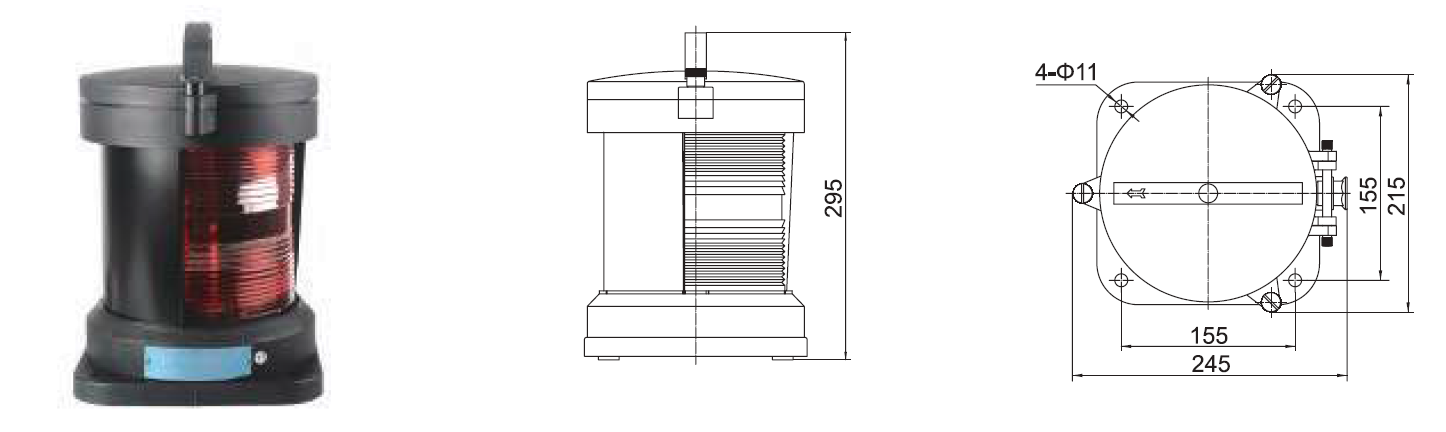

      Dimension



      Selection
     IMPA Code  370422  370423  370421  370424  370426/27/28
     Item Name  CXH1-11P  CXH2-11P  CXH3-11P  CXH4-11P  CXH6-11P

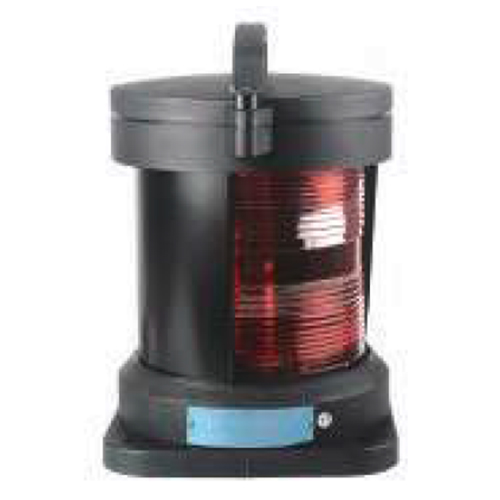

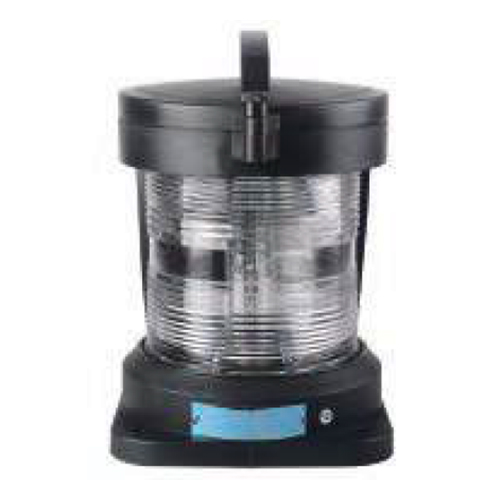

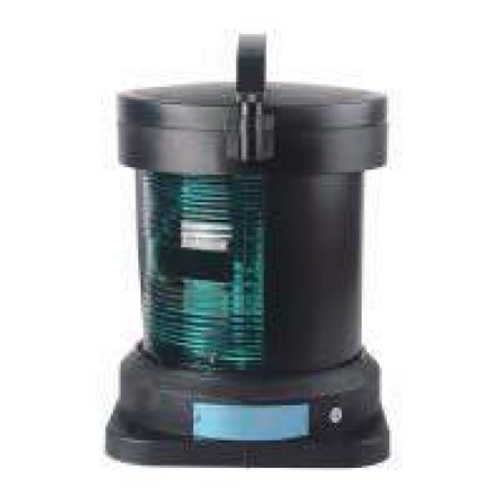

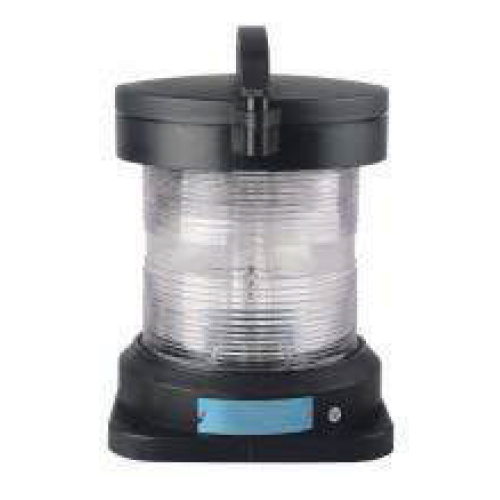

     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light  All-round Light
     Visibility  3n.m  3n.m  6n.m  3n.m  3n.m
     Level Arc  112.5°  112.5°  225°  135°  360°
     Color  Green  Red  White  White/ Yellow  Green/ Red/ White
     Power  60W  60W  60W  60W  60W
     Weight  3.0 KGS  3.0 KGS  3.0 KGS  3.0 KGS  2.80 KGS
      IMPA 374021 - 374028 / CXH-11P
