Marine Navigation Light E27 DC24V AC100-230V 1x65W | CXH-1D

Item No.: CXH1/2/3/4/6 - 1D
Application:    For Ships Over 50 Meters As The Signal Lights
Standard:      GB/T 3028-1995
Certification:  ABS/CCS
  • Feature: Single Deck
  • Material: Steel
  • Protection Class: IP55
  • Voltage: 24V/110V/220V
  • Lamp Holder: E27
  • Cable Diameter: Φ12~Φ16
  • Description Photo

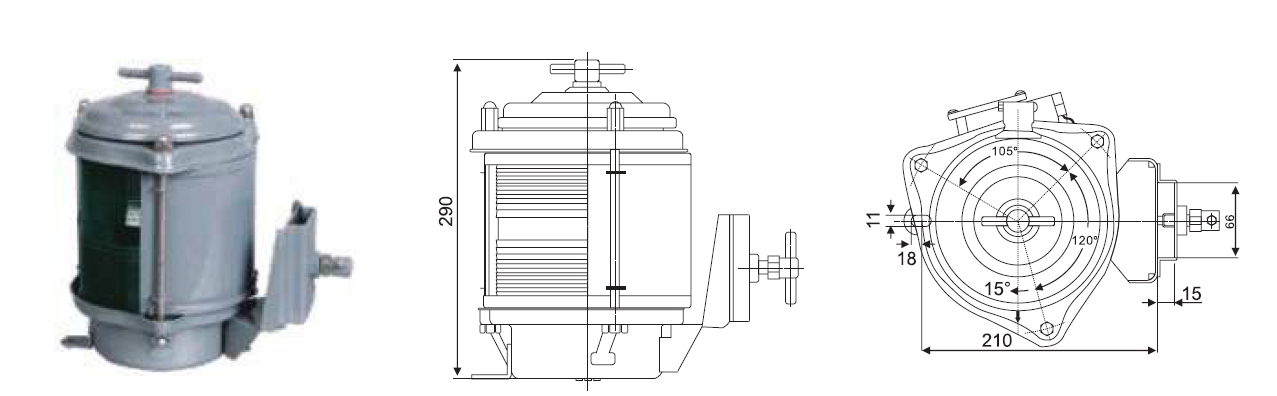

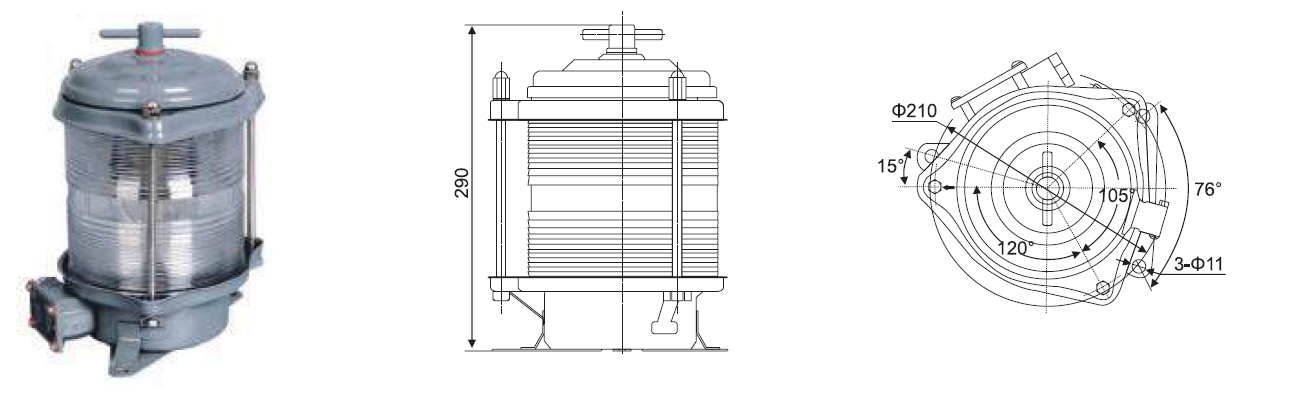

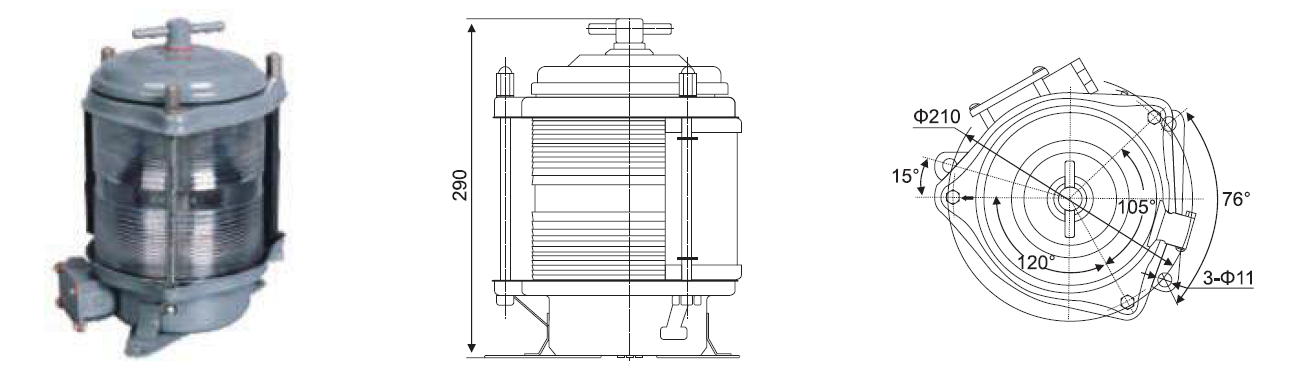

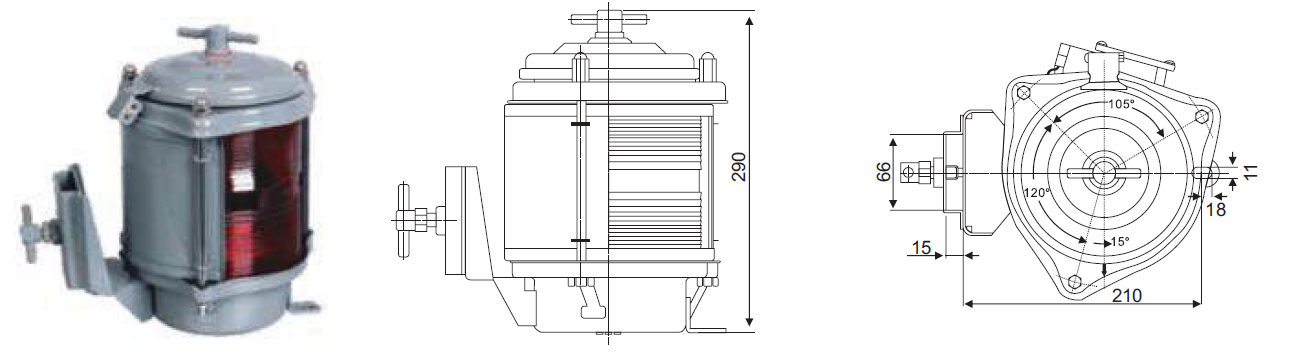

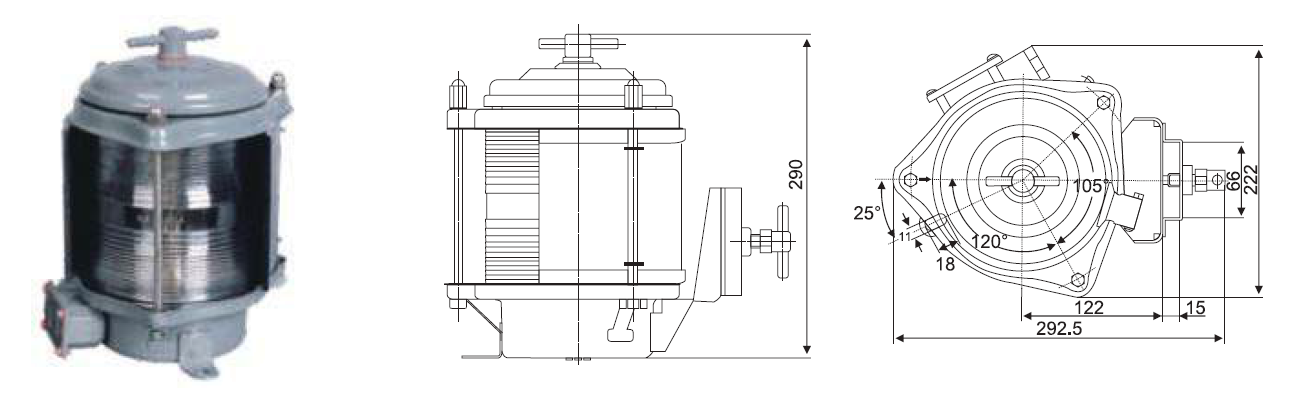

      Dimension



      Selection
     IMPA Code  370422  370423  370421  370424  370426/27/28
     Item Name  CXH1-1D  CXH2-1D  CXH3-1D  CXH4-1D  CXH6-1D
     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light  All-round Light
     Visibility  3n.m  3n.m  6n.m  3n.m  3n.m
     Level Arc  112.5°  112.5°  225°  135°  360°
     Color  Green  Red  White  White/ Yellow  Red/ Green/ White
     Power  60W  60W  60W  60W  60W
     Weight  5 KGS  5 KGS  5 KGS  5 KGS  5 KGS
      IMPA 370421 - 370428 / CXH-1D
