Marine Navigation Light BAY15d DC12-24V 1x25W | CXH-21P

Item No.: CXH1/2/3/4/6 - 21P
Application:    For Ships between 12m and 50m as the signal light
Standard:      GB/T 3028-1995, IEC60598-1-2008
Certification:  ABS
Temperature: -30℃ to 55℃
  • Feature: Single Deck
  • Material: Shell: PA+GF  |  Lampshade: PC  |  Lends Hood: Stainless Steel
  • Protection Class: IP56
  • Voltage: 12V/24V
  • Lamp Holder: BAY15d
  • Cable Diameter: Φ8
  • Description Photo

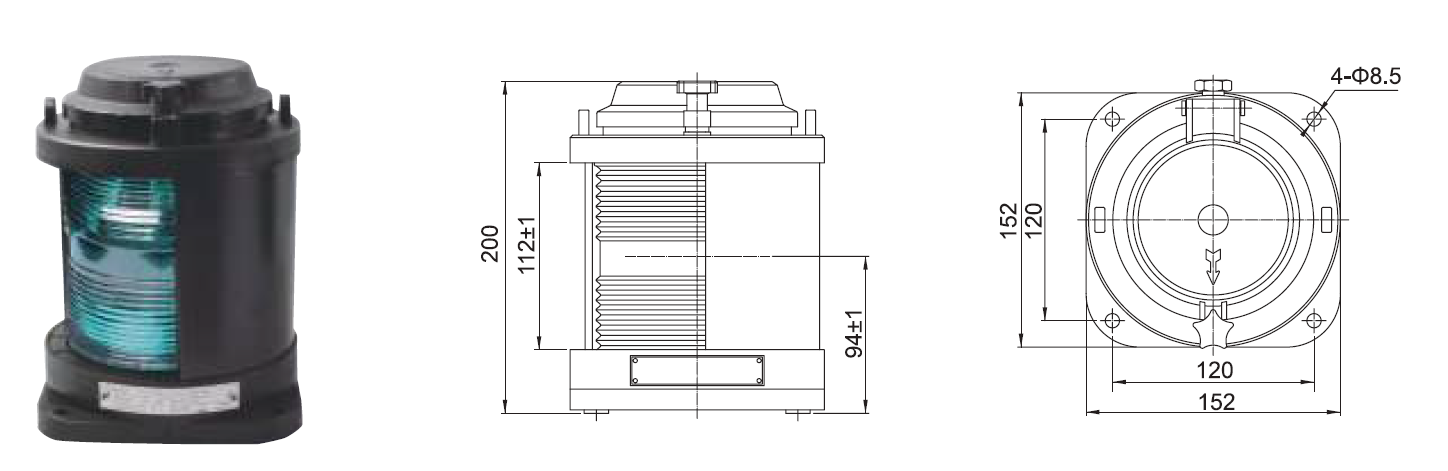

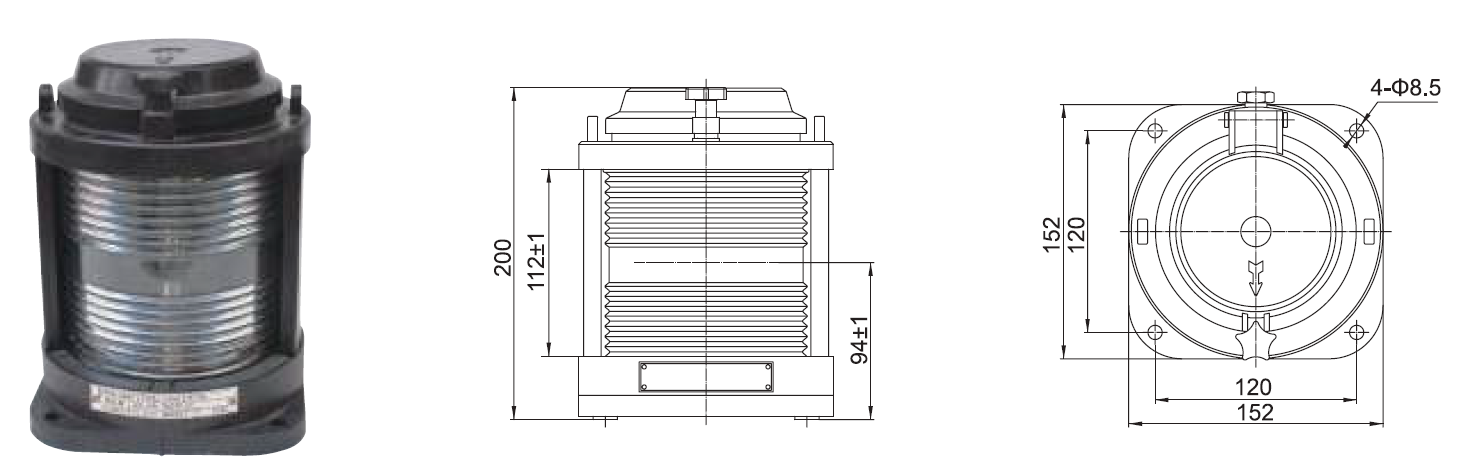

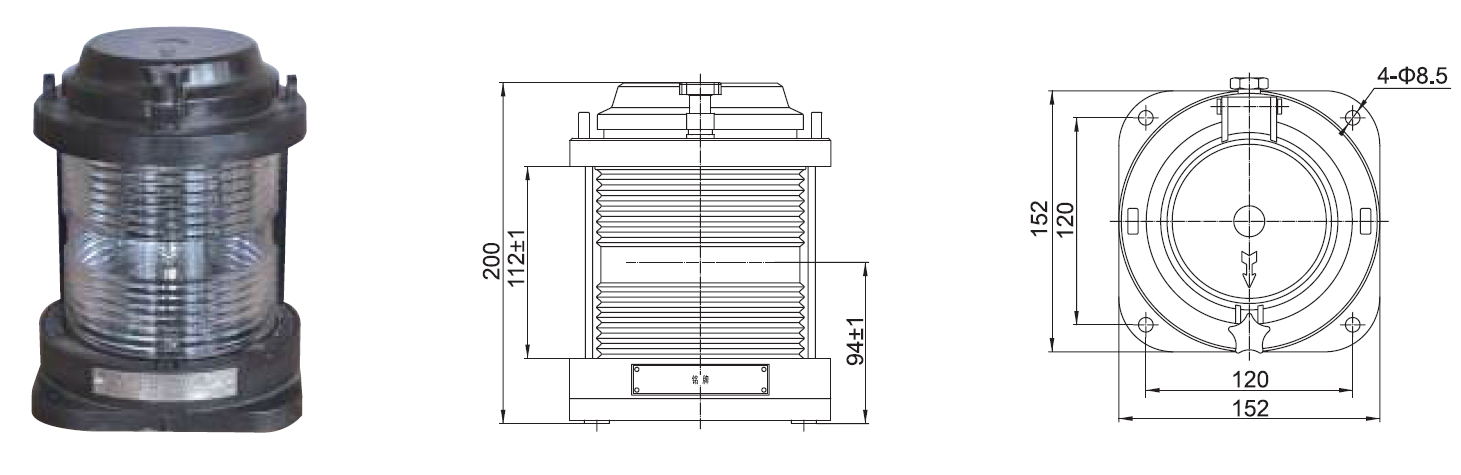

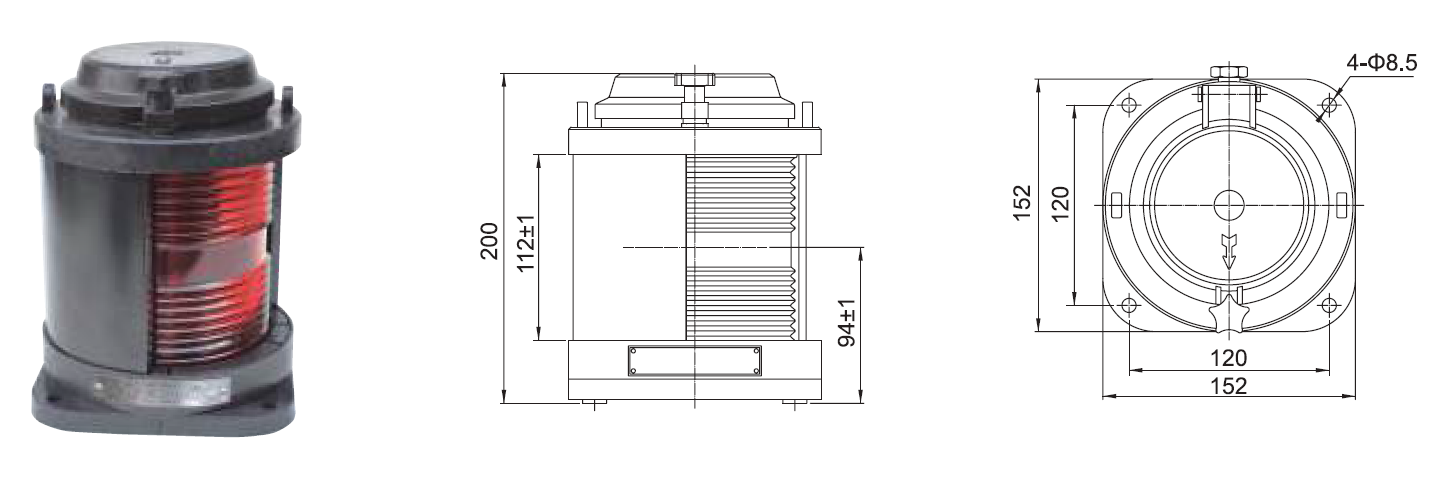

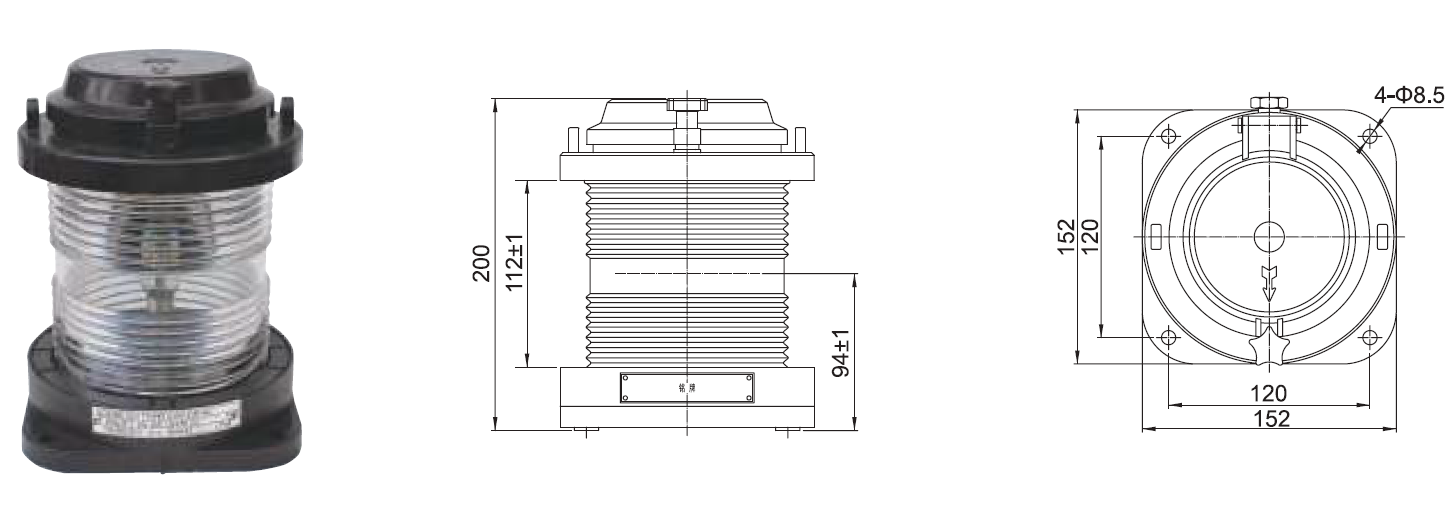

      Dimension



      Selection
     IMPA Code  370422  370423  370421  370424  370426/27/28
     Item Name  CXH1-21P  CXH2-21P  CXH3-21P  CXH4-21P  CXH6-21P
     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light  All-round Light
     Visibility  2n.m  2n.m  5n.m  2n.m  2n.m
     Level Arc  112.5°  112.5°  225°  135°  360°
     Color  Green  Red  White  White/ Yellow  Green/ Red/ White
     Power  25W  25W  25W  25W  25W
     Weight  1.2 KGS  1.2 KGS  1.2 KGS  1.2 KGS  1.0 KGS
      IMPA 370421 - 370428 / CXH1/2/3/4/5-21P
