Marine Navigation Light B15d DC12-24V 1x25W | CXH-3P

Item No.: CXH1/2/3/4/6 - 3P
Application:    For ships smaller than 12m as the signal lights
Standard:      GB/T 3028-1995,IEC60598-1-2008
Certification:  ABS/CCS
Temperature: -30℃ to 55℃
  • Feature: Single Deck
  • Material: Shell: PA+GF  |  Lampshade: PC  |  Lends Hood: Stainless Steel
  • Protection Class: IP56
  • Voltage: 12V/24V
  • Lamp Holder: B15d
  • Cable Diameter: Φ10~Φ12
  • Description Photo

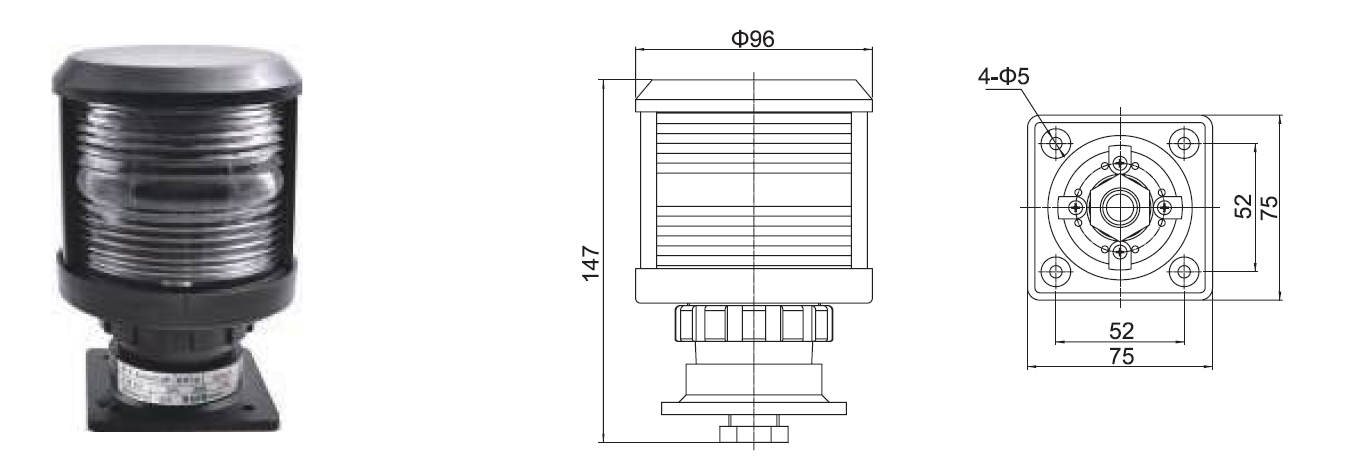

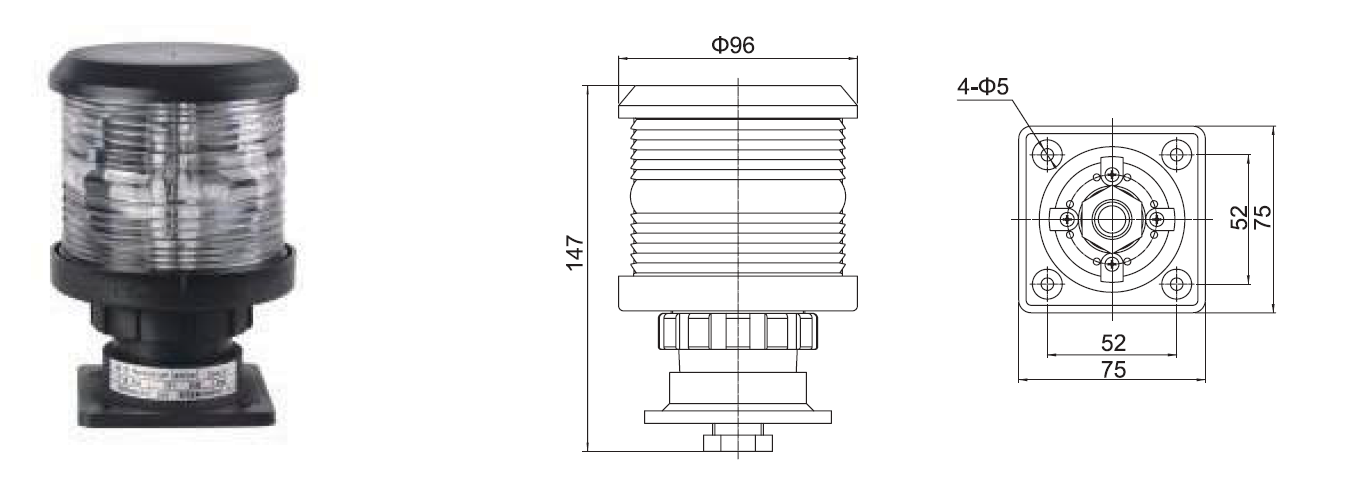

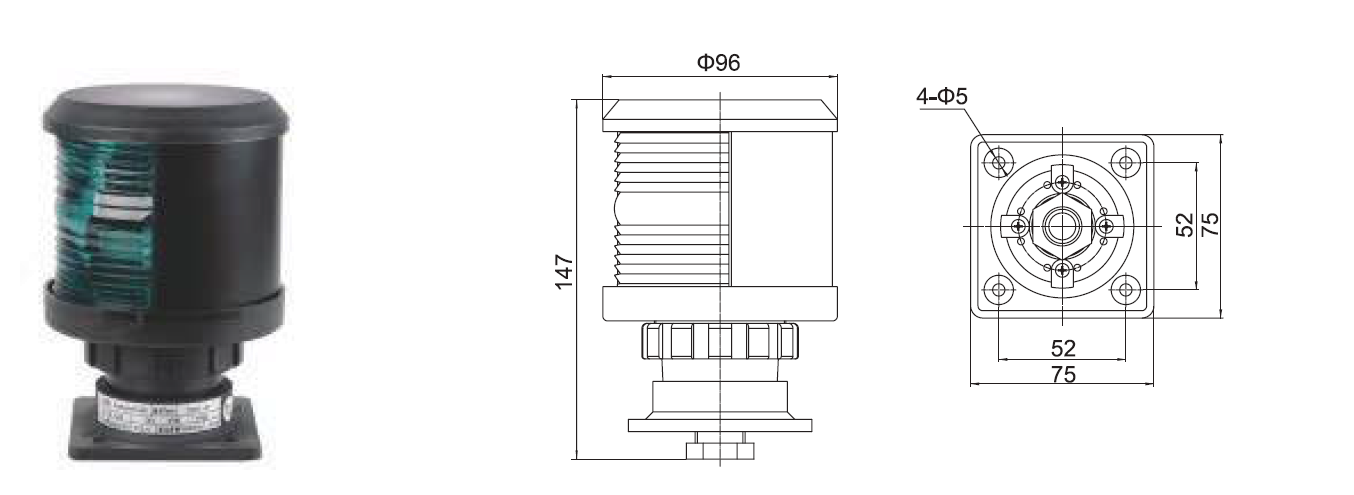

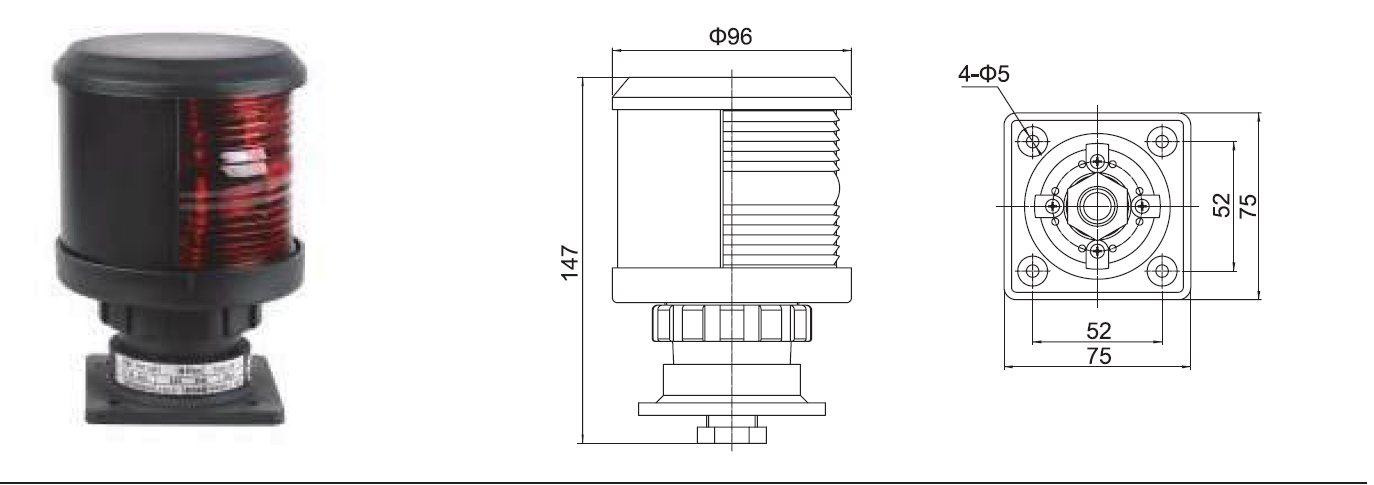

      Dimension



      Selection
     IMPA Code  370422  370423  370421  370424  370426/27/28
     Item Name  CXH1-3P  CXH2-3P  CXH3-3P  CXH4-3P  CXH6-3P
     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light  All-round Light
     Visibility  1n.m  1n.m  2n.m  2n.m  2n.m
     Level Arc  112.5°  112.5°  225°  135°  360°
     Color  Green  Red  White  White/ Yellow  Green/ Red/ White
     Power  25W  25W  25W  25W  25W
     Weight  0.48 KGS  0.48 KGS  0.45 KGS  0.45 KGS  0.42 KGS
      IMPA 370421 - 370428 / CXH-3P
