Home > Marine Work Light > Work Light - Wall

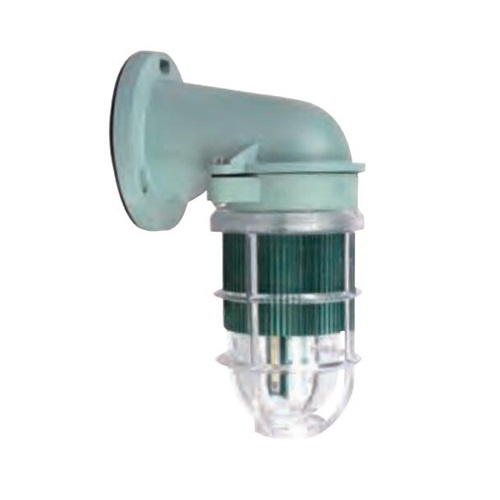

LED Module Resin Wall Light 24V-265V 12W | WB-2L
LED Module Resin Wall Light 24V-265V 12W | WB-2L LED Module Resin Wall Light 24V-265V 12W | WB-2L

LED Module Resin Wall Light 24V-265V 12W | WB-2L

Item No.: WB-2L
Application: Fit for ships with water dripping, spattering coagulating places, such as oven cabin, dry cabin, tunnel, pipeline and weatherdeck etc.
Standard: JISF8414-2003
Feature: Wall Type mounting
Material:  Synthetic Resin   |   Protection Class: IP56
Voltage: DC24, AC85V-220V / Power: 12W LED Module
Cable: Φ12- Φ16
Shade Color: Transparent / Red
Size: L171 x W110 x H275 mm   |   Weight: 1.18 KGS
INQUIRY
Description Photo
  Dimension


 IMPA CODE  TYPE  VOLTAGE  POWER  COLOR  TEMPERATURE  PROTECTION  WEIGHT
 792046  WB-2L  24V  12W  TRANSPARENT  6000K  IP56  1.20 KGS
 792049  WB-2L  24V  12W  RED  6000K  IP56  1.20 KGS
 792047  WB-2L  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.20 KGS
 792048  WB-2L  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.20 KGS
 792064  WB-2L  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.20 KGS
 792050  WB-2L  85V - 265V  12W  RED  6000K  IP56  1.20 KGS
 792063  WB-2L  85V - 265V  12W  RED  6000K  IP56  1.20 KGS
 792065  WB-2L  85V - 265V  12W  RED  6000K  IP56  1.20 KGS
 792187  BZMK01-LED  24V  12W  -  6000K  IP56  0.63 KGS
 792188  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
 792189  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
 792190  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
