Home > Marine Work Light > Work Light - Wall

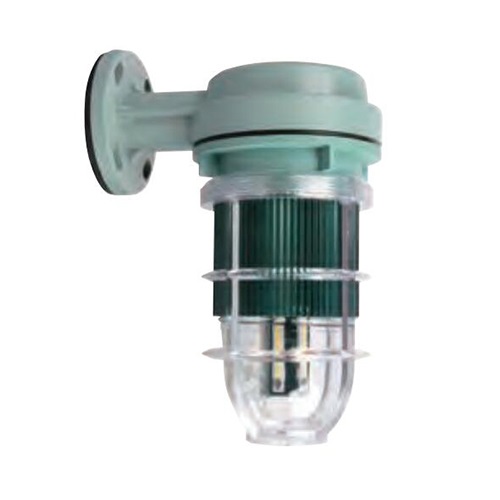

LED Module Resin Wall Light 24V-265V 12W | WB-2B-L
LED Module Resin Wall Light 24V-265V 12W | WB-2B-L LED Module Resin Wall Light 24V-265V 12W | WB-2B-L

LED Module Resin Wall Light 24V-265V 12W | WB-2B-L

Item No.: WB-2B-L
Application: Fit for ships with water dripping, spattering coagulating places, such as oven cabin, dry cabin, tunnel, pipeline and weatherdeck etc.
Standard: JISF8414-2003
Feature: Wall Type mounting
Material:  Synthetic Resin   |   Protection Class: IP56
Voltage: DC24, AC85V-220V / Power: 12W LED Module
Cable: Φ12- Φ16
Shade Color: Transparent / Red
Size: L170 x W110 x H235 mm   |   Weight: 1.14 KGS
INQUIRY
Description Photo
  Dimension


 IMPA CODE  TYPE  VOLTAGE  POWER  COLOR  TEMPERATURE  PROTECTION  WEIGHT
 792040  WB-2B-L  24V  12W  TRANSPARENT  6000K  IP56  1.14 KGS
 792043  WB-2B-L  24V  12W  RED  6000K  IP56  1.14 KGS
 792041   WB-2B-L  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.14 KGS
 792042  WB-2B-L  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.14 KGS
 792044  WB-2B-L  85V - 265V  12W  RED  6000K  IP56  1.14 KGS
 792045  WB-2B-L  85V - 265V  12W  RED  6000K  IP56  1.14 KGS
 792187  BZMK01-LED  24V  12W  -  6000K  IP56  0.63 KGS
 792188  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
 792189  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
 792190  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS


  IMPA
