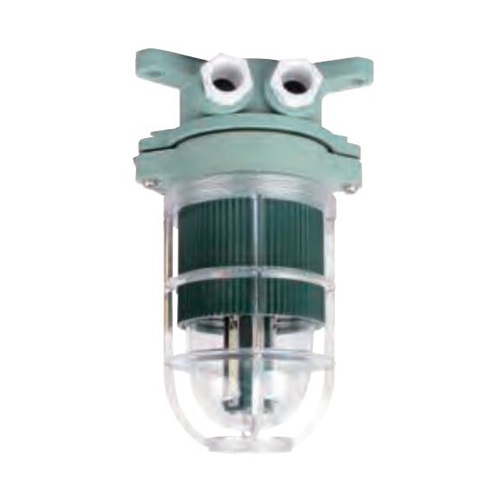

LED Module Resin Pendant Light 24V-265V 12W | DS7-2ML
LED Module Resin Pendant Light 24V-265V 12W | DS7-2ML LED Module Resin Pendant Light 24V-265V 12W | DS7-2ML

LED Module Resin Pendant Light 24V-265V 12W | DS7-2ML

Item No.: DS7-2ML
Application: Fit for ships with water dripping, spattering coagulating places, such as oven cabin, dry cabin, tunnel, pipeline and weatherdeck etc.
Standard: JISF8414-2003
Feature: Pendant Type mounting
Material:  Synthetic Resin   |   Protection Class: IP56
Voltage: DC24, AC85V-220V / Power: 12W LED Module
Cable: Φ12- Φ16
Shade Color: Transparent / Red
Size: L140 x W140 x H230 mm   |   Weight: 1.18 KGS
INQUIRY
Description Photo
  Dimension


 IMPA CODE  TYPE  VOLTAGE  POWER  COLOR  TEMPERATURE  PROTECTION  WEIGHT
 792069  DS7-2ML  24V  12W  TRANSPARENT  6000K  IP56  1.18 KGS
 792093  DS7-2ML  24V  12W  RED  6000K  IP56  1.18 KGS
 792070  DS7-2ML  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.18 KGS
 792092  DS7-2ML  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.18 KGS
 792096  DS7-2ML  85V - 265V  12W  TRANSPARENT  6000K  IP56  1.18 KGS
 792094  DS7-2ML  85V - 265V  12W  RED  6000K  IP56  1.18 KGS
 792095  DS7-2ML  85V - 265V  12W  RED  6000K  IP56  1.18 KGS
 792097  DS7-2ML  85V - 265V  12W  RED  6000K  IP56  1.18 KGS
 792187  BZMK01-LED  24V  12W  -  6000K  IP56  0.63 KGS
 792188  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
 792189  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
 792190  BZMK02-LED  85V - 265V  12W  -  6000K  IP56  0.63 KGS
