Home > Marine Navigation Signal Light > Navigation Lights - Double

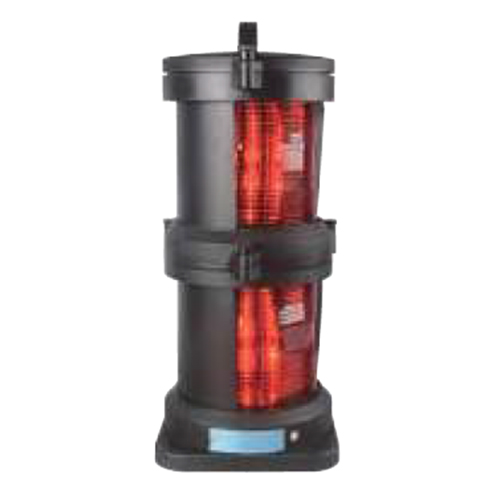

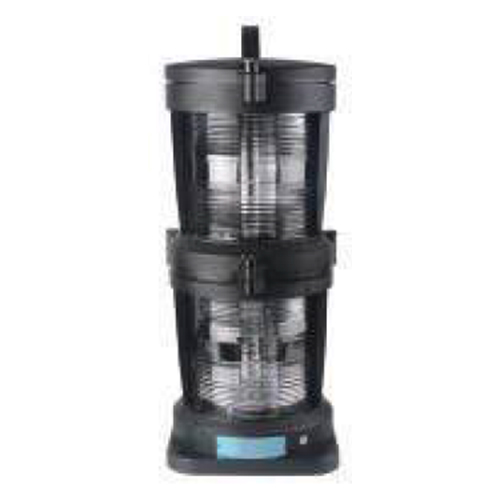

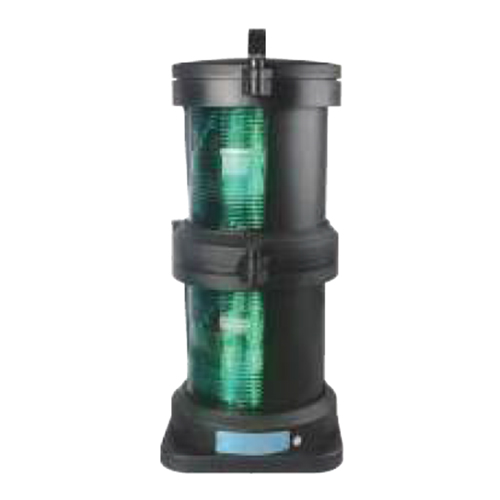

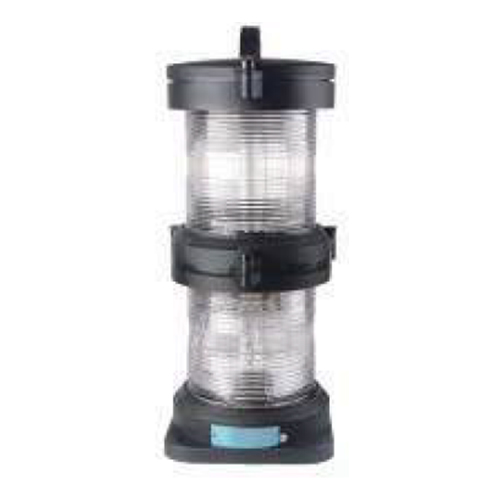

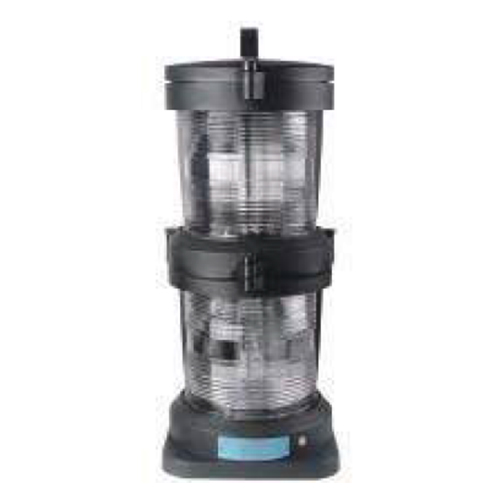

LED Marine Navigation Light 2x8W | CXH-101PL
LED Marine Navigation Light 2x8W | CXH-101PL LED Marine Navigation Light 2x8W | CXH-101PL LED Marine Navigation Light 2x8W | CXH-101PL LED Marine Navigation Light 2x8W | CXH-101PL LED Marine Navigation Light 2x8W | CXH-101PL

LED Marine Navigation Light 2x8W | CXH-101PL

Item No.: CXH1/2/3/4/6 - 101PL
Application:    For Ships More Than 50 Meters As The Signal Lights
Patent:            ZL 201721558792.X
Standard:      GB/T 3028, MSC 253(8)
Tmeperature: -30℃ to 55℃
  • Feature: Double Deck
  • Material: Shell: PA+GF  |  Lampshade: PC  |  Lends Hood: Stainless Steel
  • Protection Class: IP56
  • Voltage: AC100-240V, 50/60Hz, DC24V
  • Lamp Holder: LED
  • Cable Diameter: Φ10~Φ12
    • INQUIRY
    Description Photo

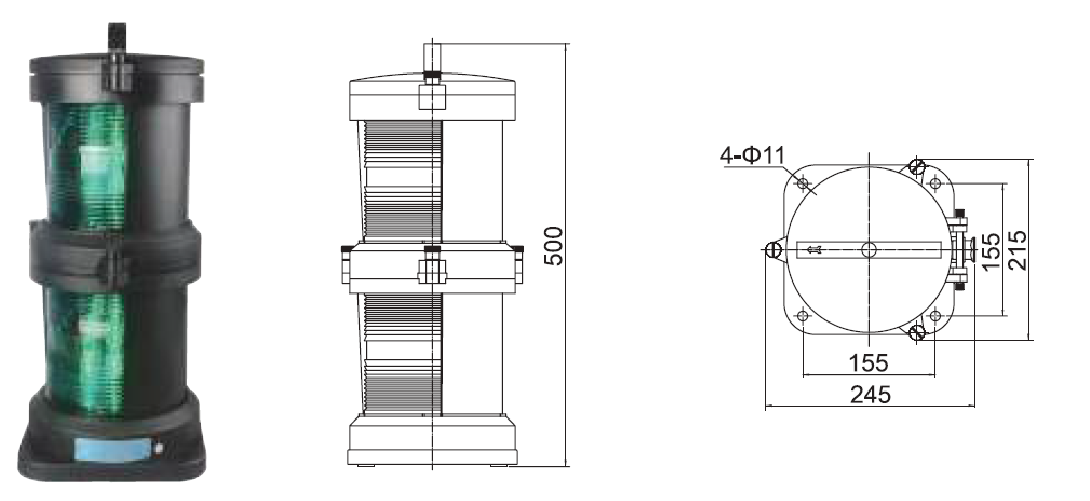

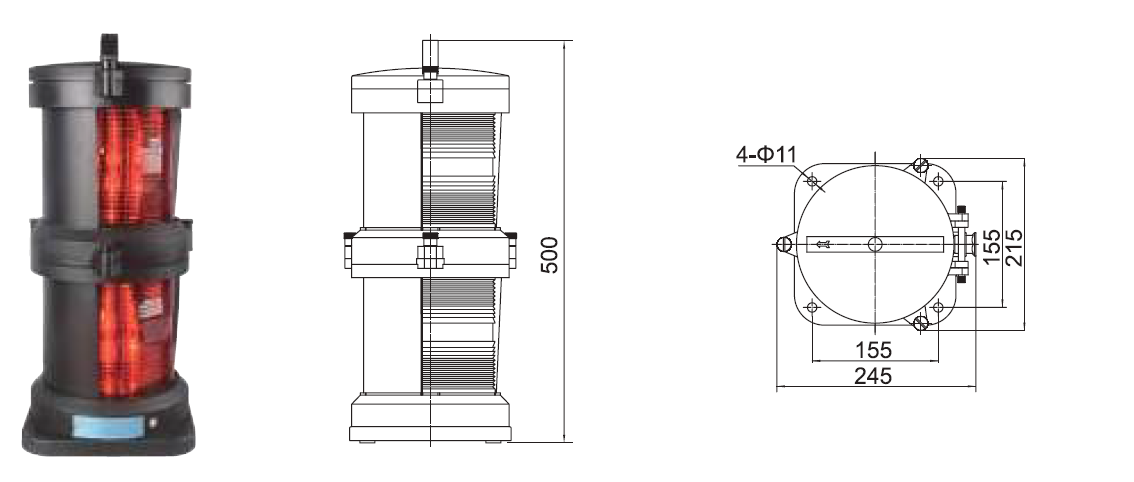

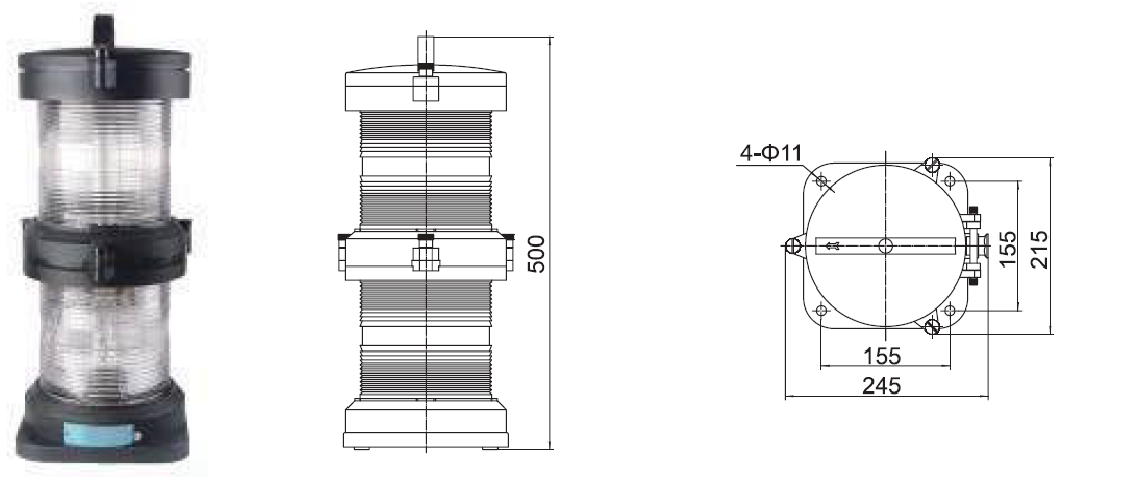

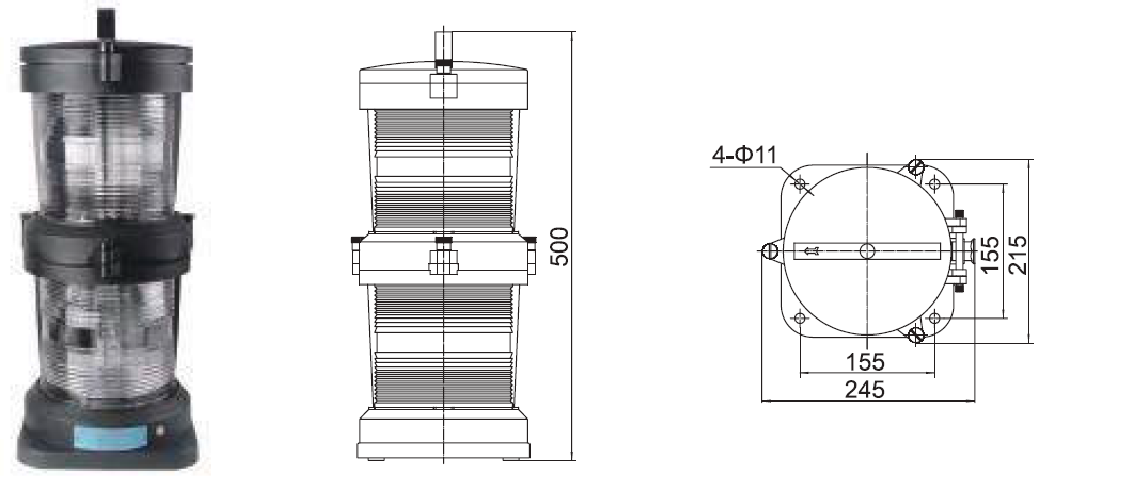

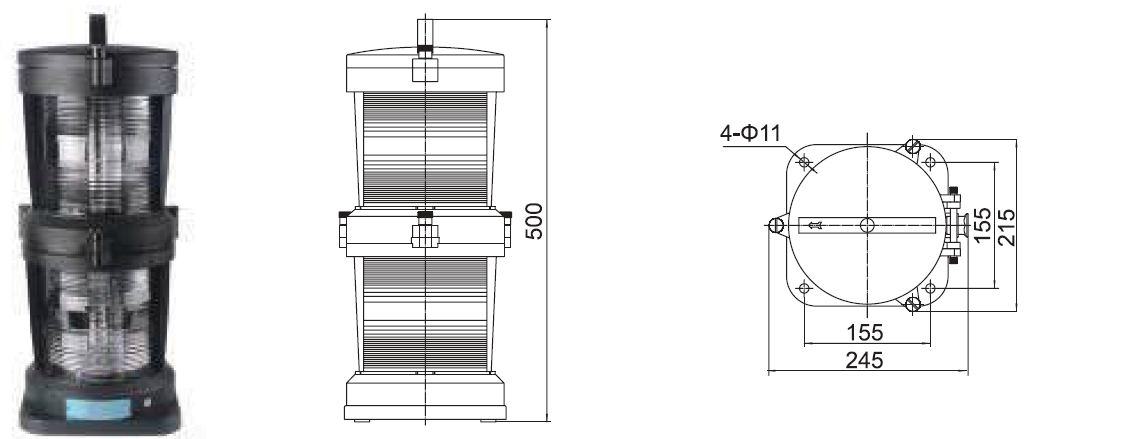

      Dimension



      Selection
     IMPA Code  370422  370423  370421  370424  370426/27/28
     Item Name  CXH1-101PL  CXH2-101PL  CXH3-101PL  CXH4-101PL  CXH6-101PL
     Item Type  Starboard Light  Port Light  Masthead Light  Stern Light  All-round Light
     Visibility  3n.m  3n.m  6n.m  3n.m  3n.m
     Level Arc  112.5°  112.5°  225°  135°  360°
     Color  Green  Red  White  White/ Yellow  Green/ Red/ White
     Power  2*8W  2*8W  2*8W  2*8W  2*8W
     Weight  5.2 KGS  5.2 KGS  5.2 KGS  5.2 KGS  5.0 KGS
      IMPA 370421 - 370428 / CXH-101PL
