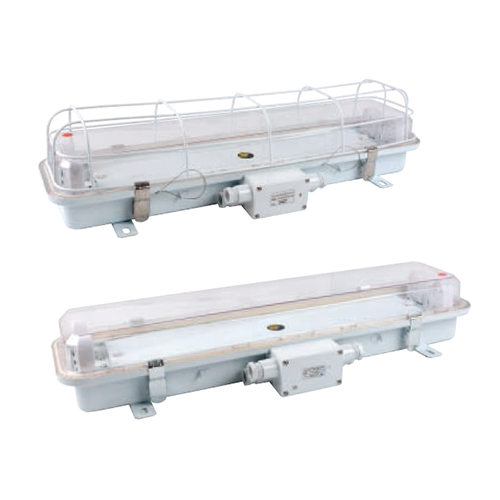

IMPA 791861 Marine Pendant Fluorescent Light 2x20W | JCY23-2EF
IMPA 791861 Marine Pendant Fluorescent Light 2x20W | JCY23-2EF IMPA 791861 Marine Pendant Fluorescent Light 2x20W | JCY23-2EF

IMPA 791861 Marine Pendant Fluorescent Light 2x20W | JCY23-2EF

Item No.: IMPA 791861 - IMPA 791913 / JCY23/33/43
Standard: CB/T3857-1999
Certification：CCS
Material: Shell: Steel    |    Lampshade: PC
Rated Voltage: 110V/60Hz, 220V/50Hz/60Hz
Protection Class: IP56
Lamp Holder: G13
Power Factor: >0.85
Cable: Φ12~Φ16
INQUIRY
Description Photo
Dimension


Selection

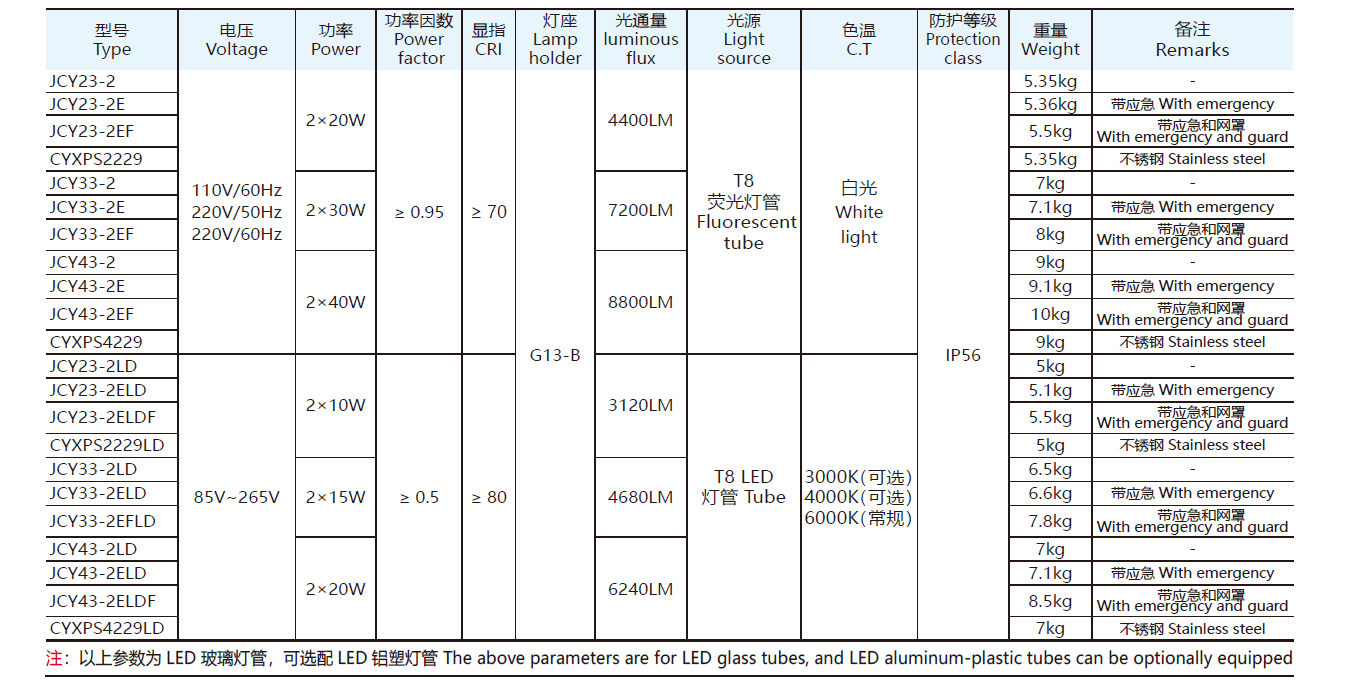

 Item Code  Power  Size/mm  Weight  Remarks
 JCY23-2  2*20W  L692 x W185 x H134  5.0 KGS  -
 JCY23-2E  2*20W  L692 x W185 x H134  5.1 KGS  With Emergency
 JCY23-2EF  2*20W  L692 x W185 x H155  5.2 KGS  With Emergency & Lampshade
 JCY33-2  2*30W  L992 x W185 x H134  7.0 KGS  -
 JCY33-2E  2*30W  L992 x W185 x H134  7.1 KGS  With Emergency
 JCY33-2EF  2*30W  L992 x W185 x H155  7.2 KGS  With Emergency & Lampshade
 JCY43-2  2*40W  L1299 x W185 x H134  8.3 KGS  -
 JCY43-2E  2*40W  L1299 x W185 x H134  8.4 KGS  With Emergency
 JCY43-2EF  2*40W  L1299 x W185 x H155  8.5 KGS  With Emergency & Lampshade
JCY23-2EF


JCY43-2E


JCY43-2EF
