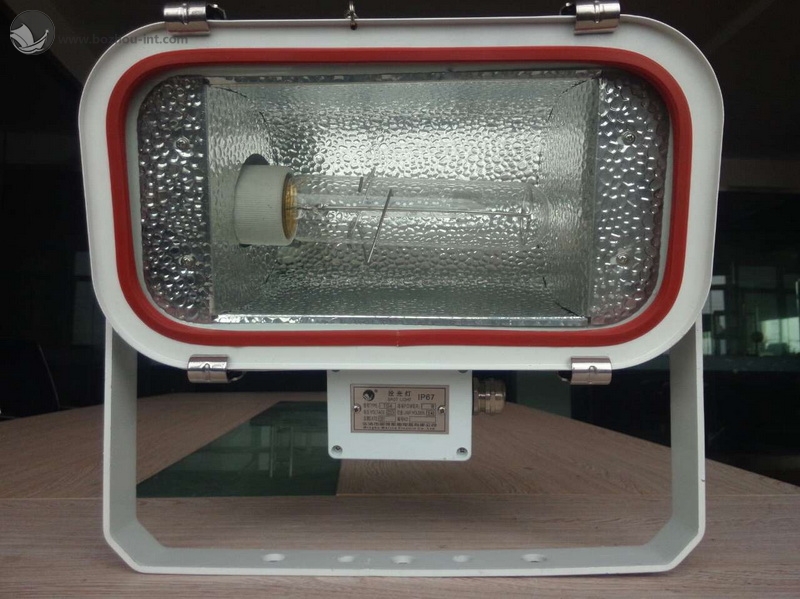

IMPA 791821 791822 Stainless Steel Marine Flood Light E40 100-230V 250-400-1000W | TG5
IMPA 791821 791822 Stainless Steel Marine Flood Light E40 100-230V 250-400-1000W | TG5

IMPA 791821 791822 Stainless Steel Marine Flood Light E40 100-230V 250-400-1000W | TG5

Item No.: IMPA 791821-791822, TG4/TG5/TG6
Application: Suitable for ship, charf, dock, plaza, tunnel, building etc.
Material:  - Body: Stainless Steel
                - Lampshade: Tempered Glass
                - Reflector: Anodizing Aluminian Plate
Feature: Good sealing performance and strong anti-corrosion ability
Adjustion Angle: Up 90°, Down 45°
Certificate: CCS
Protection Class: IP67    |    Cable: Φ12- Φ14
Size: L495 x W145 x H365mm  |  Weight: 7.8 KGS
INQUIRY
Description Photo Ballast Selection
  Dimension


  Selection
 Type  Voltage  Power  Luminius flux  Illuminant  Annex
 TG4  110V/220V  1000W  22,000  Tungsten halogen lamp  Illuminant Type - JTT
 TG5  110V/220V  250W
 400W		  26,000
 47,000		  High pressure solium lamp  Ballast- Box
 TG6  110V/220V  250W
 400W		  20,500
 36,000		  Metal halide lamp  Ballast - Box
  IMPA  791821 - 791822 / Flood Light TG4

  Dimension




  220V Ballast Box
