IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27
IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27 IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27 IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27

IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27

Item No.: IMPA 370481-370482 / TG26, TG27, TG28

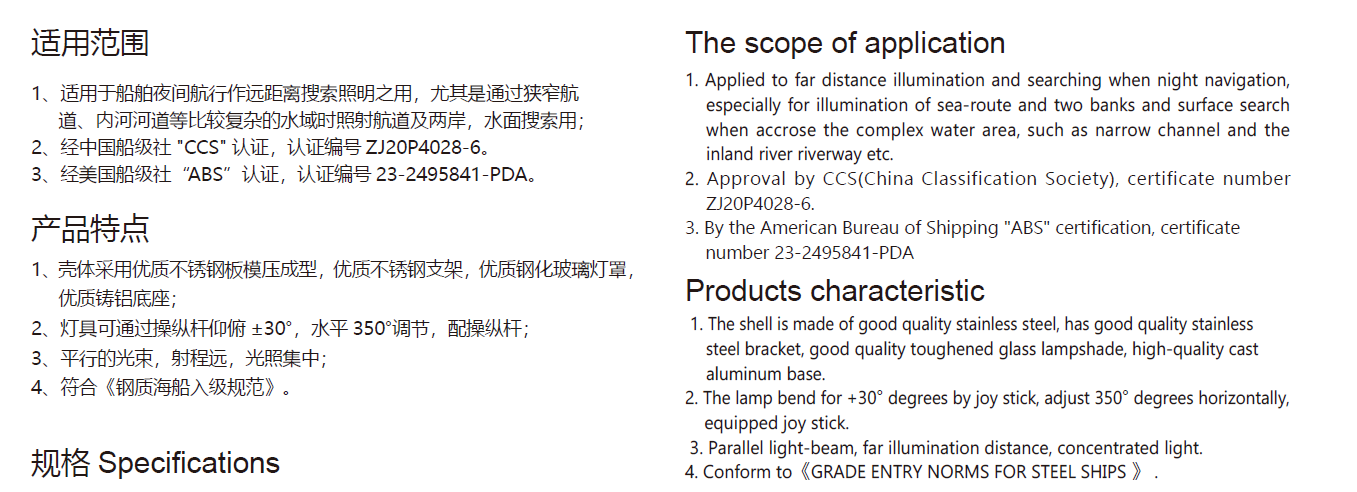

Application: For long distance searching;
Certification: ABS / CCS
Material:    Shell: Stainless Steel
                  Bracket: Stainless Steel
                  Lamp Shade: Tempered Glass
                  Base: Aluminum
Protection Class:  IP56      Cable: Φ10- Φ12
Adjustment:  Horizontally 350°，up and down ±30° by control stick;
Light Source:  Tungsten halogen light, parallel beam & long range;
INQUIRY
Description Photo
  Dimension



  Selection

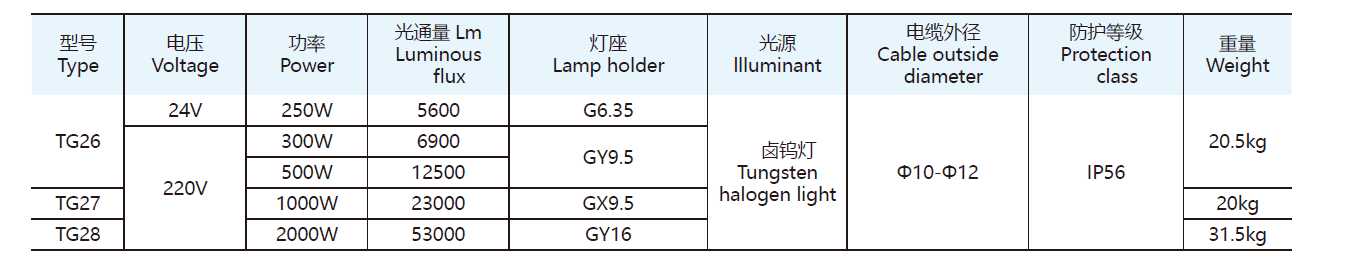

 Type  Voltage  Power  Luminous Flux  Lmap Holder  Size/mm  Weight
 TG26  24V
 220V
 		  250W
 300W
 500W		  5,600
 6,900
 12,500		  G6.35
 G9.5
 		  Φ400 x W390 x H950  20.5 KGS
 TG27  220V  1,000W  23,000  G9.5  Φ400 x W390 x H950  20.5 KGS
 TG28  220V  2,000W  53,000  GY16  Φ520 x W460 x H870  31.5 KGS

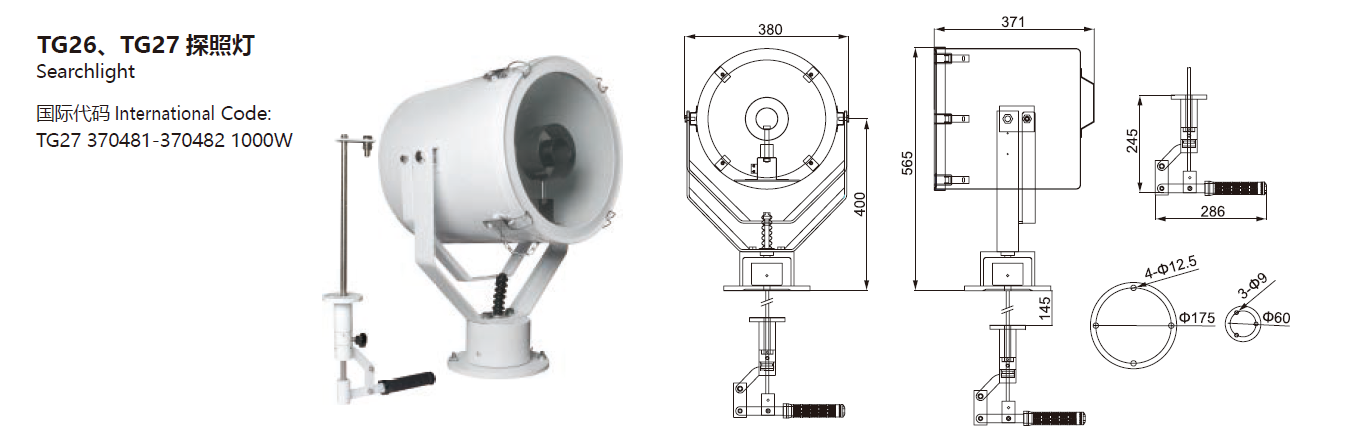

  Searchlight TG27 220V 1000W

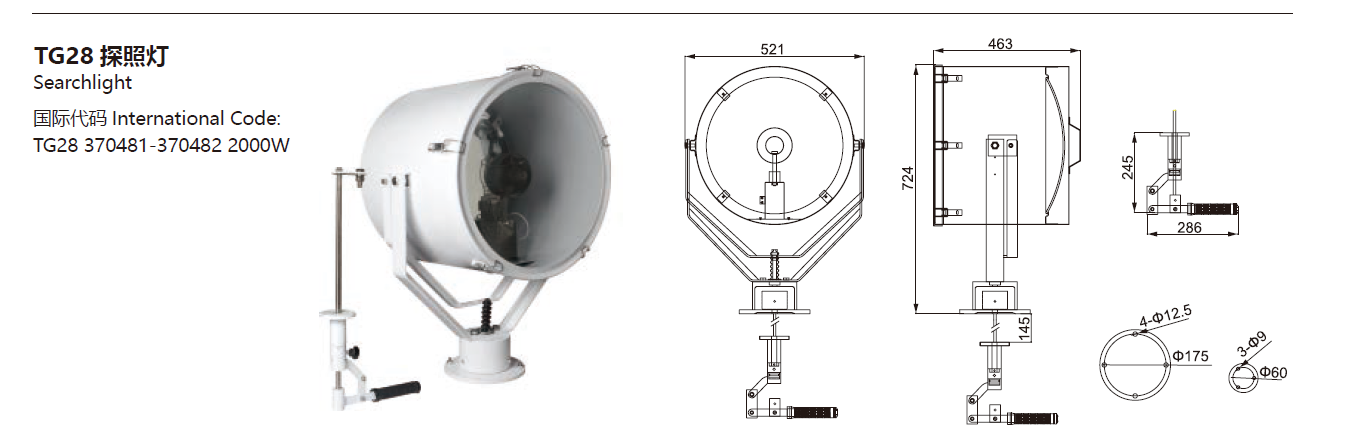

  Searchlight TG28 220V 2000W
