Home > Marine Spotlight and Flood Light > Marine Searchlight
IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27-B
IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27-B IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27-B IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27-B

IMPA 370481 370482 SUS304 1000W 2000W Searchlight | TG27-B

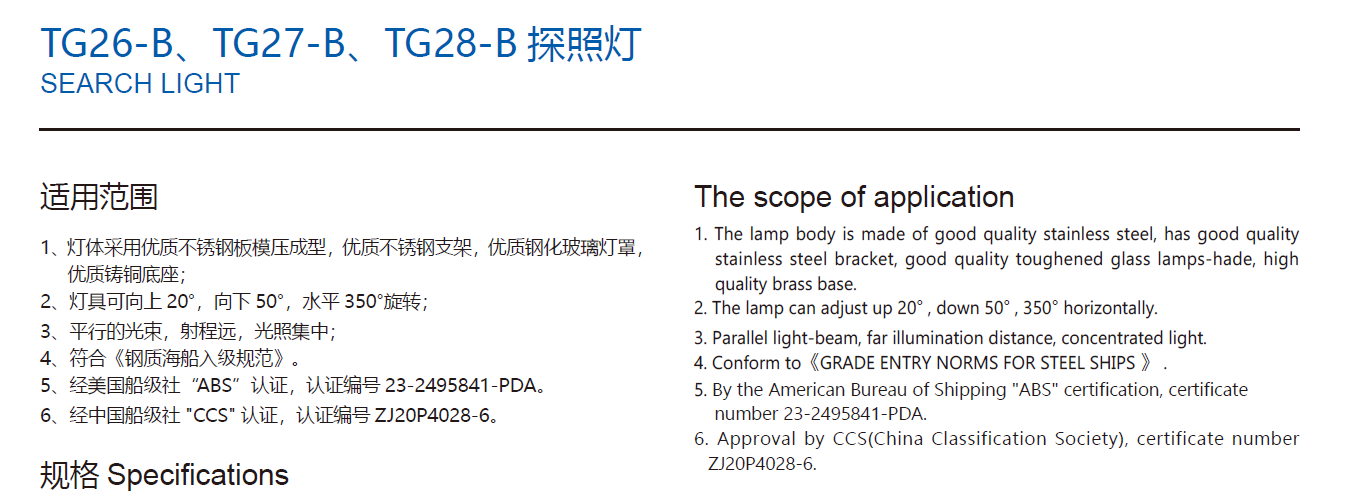

Item No.: IMPA370481 370482 / TG26-B TG27-B TG28-B
Application: For long distance searching;
Certification:  CCS
Material:    Shell: Stainless Steel
                  Bracket: Stainless Steel
                  Lamp Shade: Tempered Glass
                  Base: Aluminum
Protection Class:  IP56      Cable: Φ10- Φ12
Adjustment:  Horizontally 350°，up20° and down 50° by control stick;
Light Source:  Tungsten halogen light, parallel beam & long range;
INQUIRY
Description Photo
  Dimension


  Selection

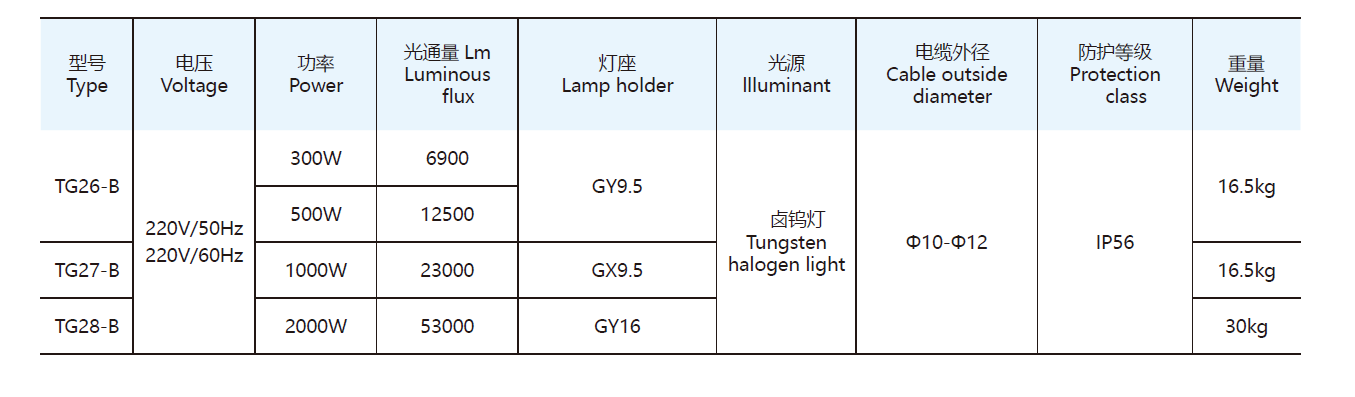

 Type  Voltage  Power  Luminous Flux  Lmap Holder  Size/mm  Weight
 TG26-B  220V  300W
 500W		   6,900
 12,500
 GY9.5
 		  Φ400 x W390 x H530  16.5 KGS

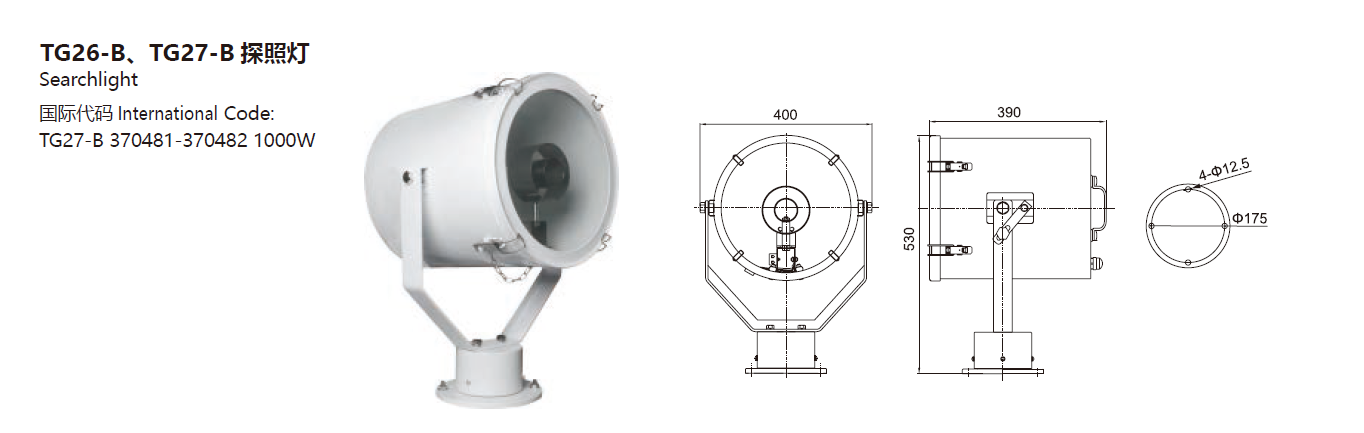

 TG27-B  220V  1,000W  23,000  GX9.5  Φ400 x W390 x H530  15.5 KGS
 TG28-B  220V  2,000W  53,000  GY16  Φ520 x W460 x H724  30 KGS

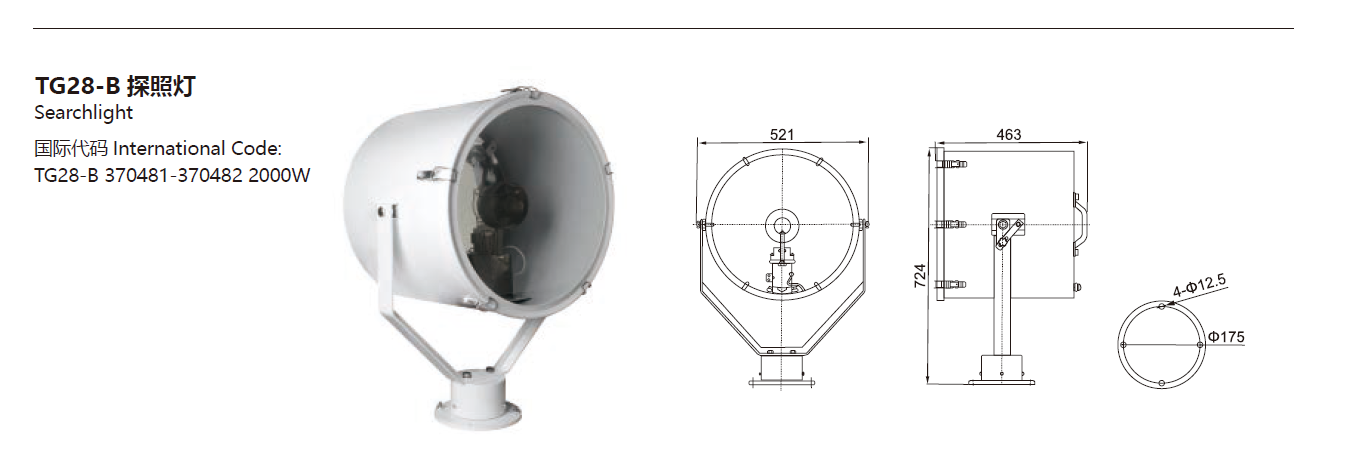

  Searchlight / TG28-B
