Home > Marine Electrical Connectors > Explosion Proof Connectors > Explosion Proof Junction Box

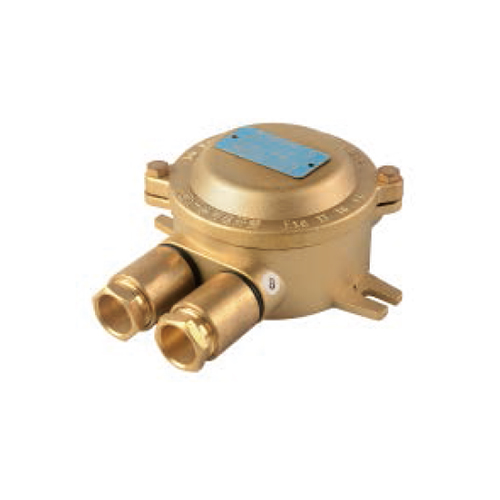

Brass Ex Proof Junction Box Exd II T6 550V/20A | DCJXH202-2
Brass Ex Proof Junction Box Exd II T6 550V/20A | DCJXH202-2

Brass Ex Proof Junction Box Exd II T6 550V/20A | DCJXH202-2

Item No.: DCJXH202-2
Application: Fit for ships, sea petroleum, chemical industry etc.
Standard: IEC 60079
Ex Code: Exd IIC T6
Protection Class:  IP56
Material: Brass
Rated Voltage: 500V
Rated Current: 20A
Cable Dia: Φ10- Φ12.5
Weight:  1.4 KGS
INQUIRY
Description Photo

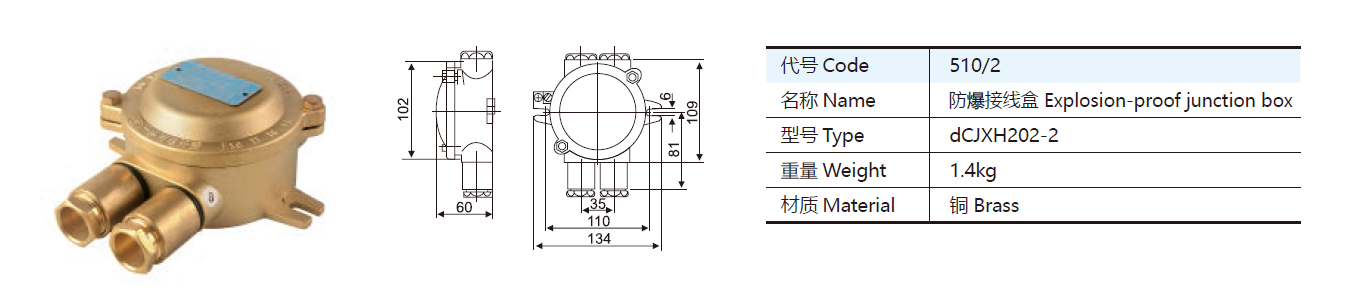

  Dimension

DCJXH202-2
