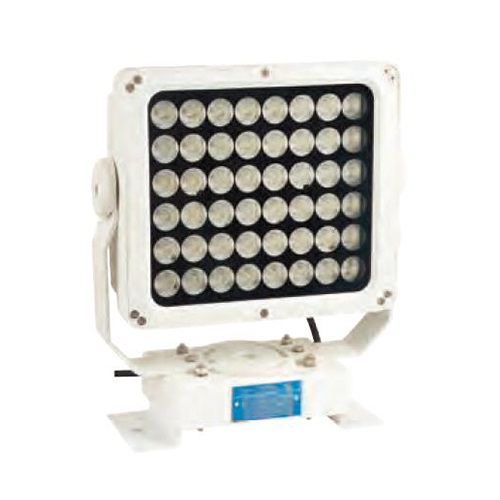

Aluminum LED Marine Flood Light 85-265V 50W | TG17-L
Aluminum LED Marine Flood Light 85-265V 50W | TG17-L

Aluminum LED Marine Flood Light 85-265V 50W | TG17-L

Item No.: TG17-L
Application: For ship, port dock, station,squares, bridges, plaza etc.
Protection Class: IP56
Certificate: CCS
Material:  Aluminium + Tempered glass
Voltage: AC85-265V / 50*1W / 120LM/W    |    Cabl: Φ10- Φ12
Operating temperature: -30℃ to 60℃  |  Color: Pure White 6000K
Lifetime: 50,000 hours
Size: L283 x W90 x H285 mm  |  Weight: 5 KGS
INQUIRY
Description

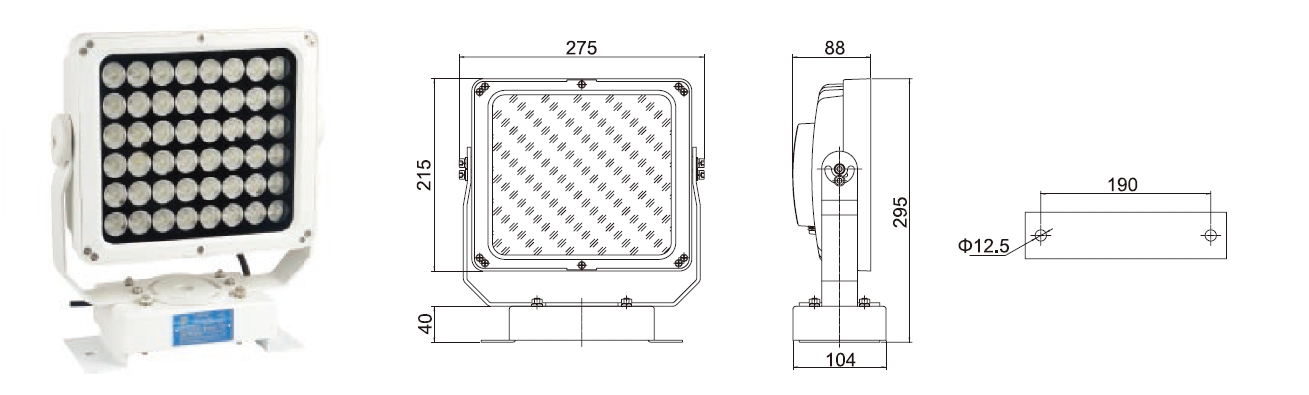

  Dimension


  Fearture

◆ High Brightness - select good quality LED chip beads with luminous flux 120LM/W, light angle 120°, color index > 80;
◆ Energy Saving - Long working life with low power consumption, make sure 50,000 hours lifetime;
◆ Impact Resistance - Strong aluminum alloy with high-strength tempered glass; good light transmission performance, impact resistance；
◆ Anti-Corrosion - Aluminium alloy material with high thermal conductivity; low temperature rise, anodizing treatment for anti-corrosion;
◆ Dustproof and Waterproof - High-quality anti-aging silicone rubber sealing ring, dustproof and waterproof to Class IP66;
◆ Safety - LED drive components have good performance, with constant rate circuit design, short circuit and excessive protection.
