Home > Marine Navigation Signal Light > Signal Lights - Aldis Lamp
Aldis Lamp IMPA 330641 Light Fixture / Charger / Battery | CXD8
Aldis Lamp IMPA 330641 Light Fixture / Charger / Battery | CXD8 Aldis Lamp IMPA 330641 Light Fixture / Charger / Battery | CXD8

Aldis Lamp IMPA 330641 Light Fixture / Charger / Battery | CXD8

Item No.: CXD8
Application: Communication through daylight signal light between ships
Standard: MS.C.95(72), JISF8456-1996
Patent: ZL 2014 3 0497341.5
Certification:  ABS
IMPA: 330641/ 330646 / 330647
  • Feature: Daylight Signal Light
  • Material: Aluminium
  • Protection Class: IP44/IP20
  • Voltage: 24V/ 60W
  • Lamp Holder: G6.35
  • Cable Diameter: Φ10
    • INQUIRY
    Description CXD8-CDX Photo

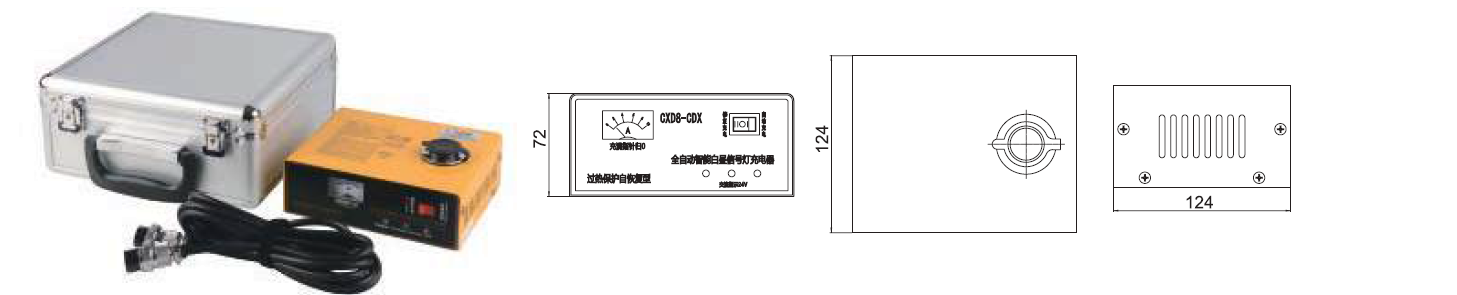

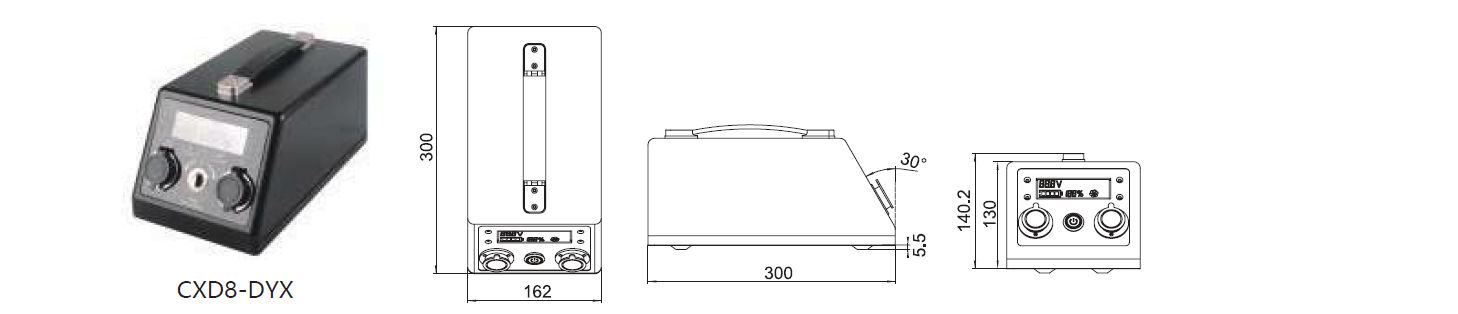

      Dimension


      Parameter

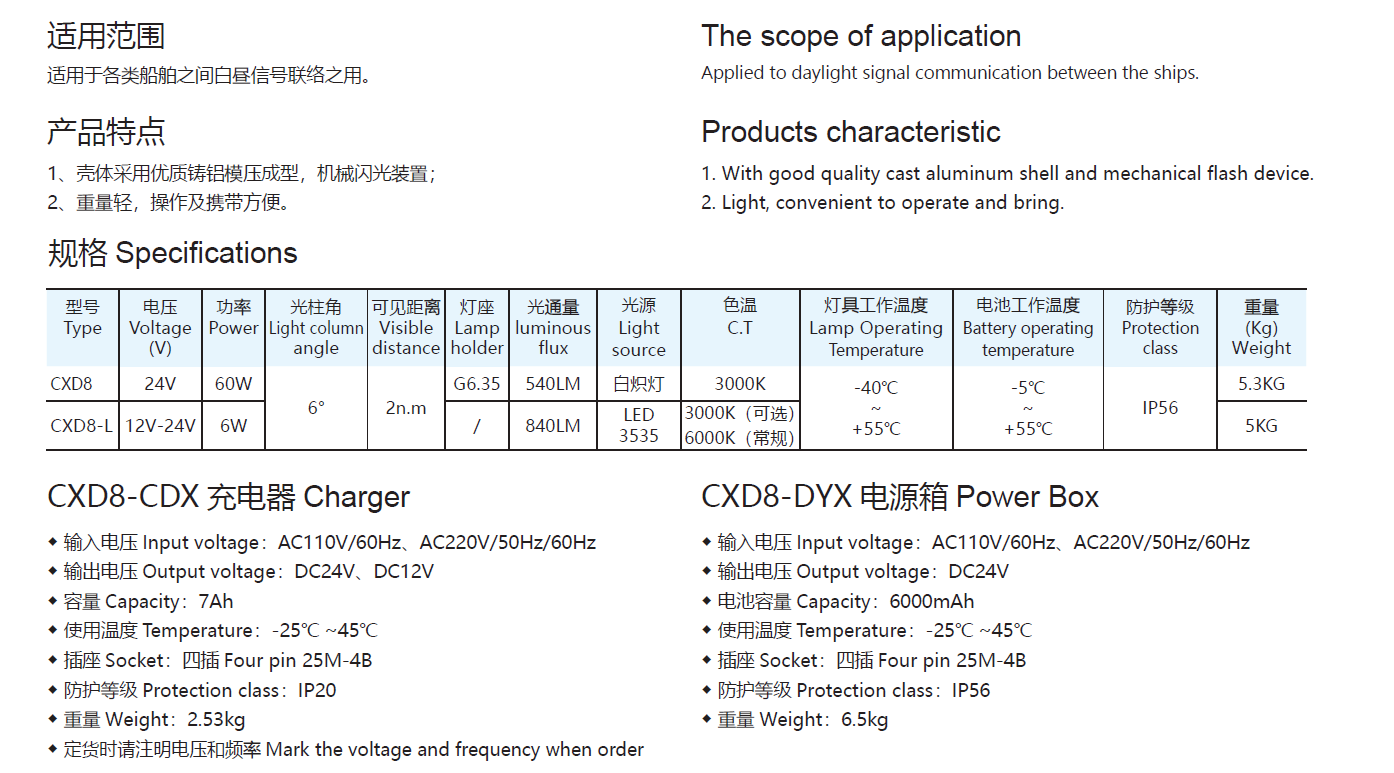

     Item  Power  Lighting  Telecope  Visibility  Lamp Holder  Protection Class  Plug  Cable Diameter  Weight
     CXD8  24V/60W  Intensity 60,000dc / Pillar Angle 6°  4x / visul angle 3°  2n.m  G6.35  IP44  4 pin 25M-4A  Φ9.5  5.3 KGS
      Parameter
     Item  Input  Output  Capacity  Plug  Temperature  Protection Class  Weight

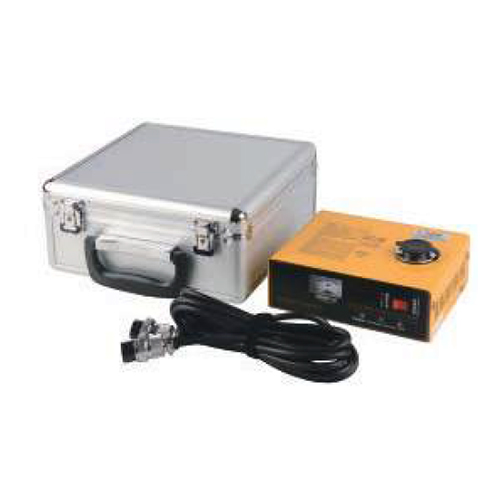

     CXD8-CDX  AC110V/220V  DC12V/24V  7Ah  25M-4B/ 25M-3B  -25℃ to 45℃  IP20  2.5 KGS
      IMPA 330641 / CXD8
